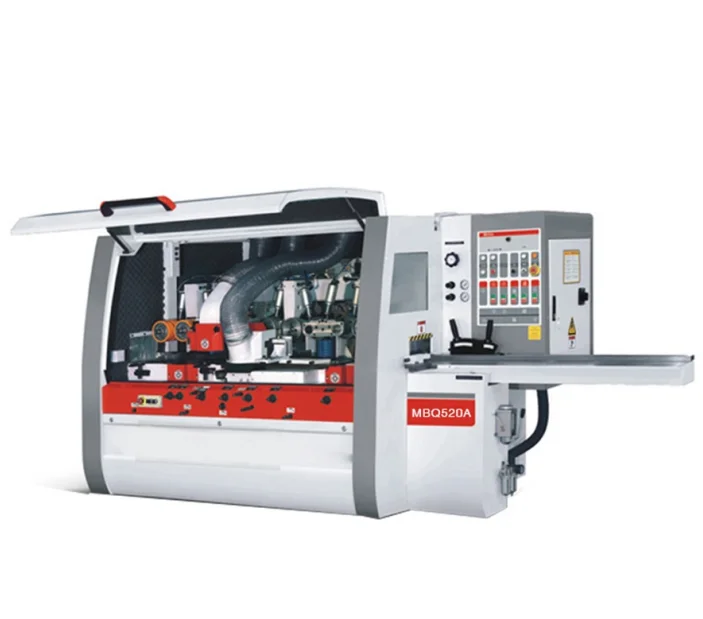

MBQ520A Four Side Moulder 4 Side Planer Moulder Thicknesser Planer Woodworking Machine
MBQ520A Four Side Moulder 4 Side Planer Moulder Thicknesser Planer Woodworking Machine
| type | Edge Planer | max.planing width(mm) | 200 |
| power (kw) | 34.25kw(45.93hp) | core components | Engine, Motor |
| sliding table equipped | No | machinery test report | Provided |
| video outgoing-inspection | Provided | key selling points | Easy To Operate |
| max.planing depth(mm) | 120 mm(4.72in) | weight (kg) | 2640 KG(5820.20lb) |
| Working width | 25- 200mm | Working thickness | 8-120mm |
| Working table length | 1800mm | Feeding speed | 6-35m/min |
| Main shaft diameter | 40mm | Main shaft revolution | 6000r/min |
| Pneumatic source pressure | 0.6Mpa | 1st Lower shaft | 5.5kw/7.5HP |
| 1st Upper shaft | 7.5kw/10HP | Right vertical shaft | 5.5kw/7.5HP |
