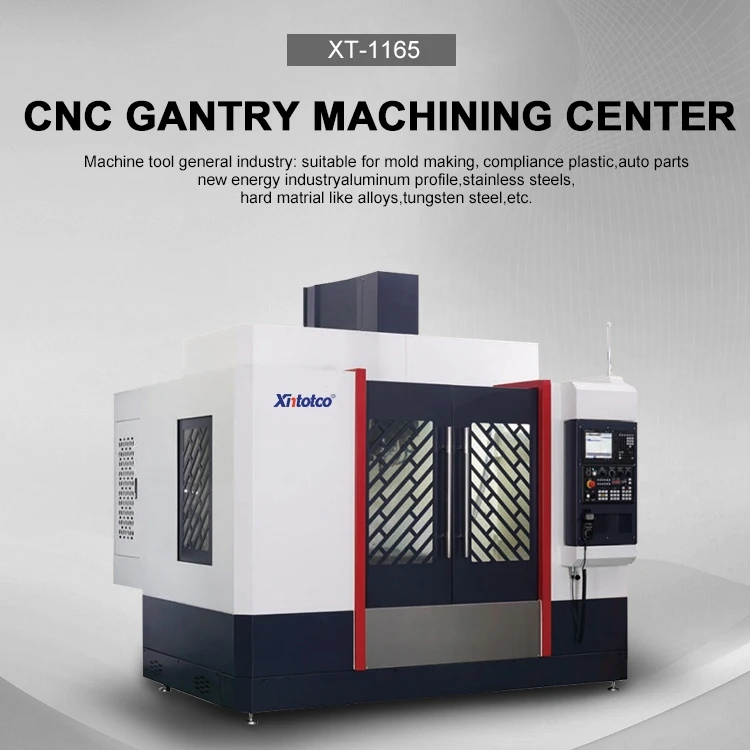

Machining Center High Precision Cnc Machining Center Gantry Machining Center China Cnc Lathe Machine for Mold Making
Machining Center High Precision Cnc Machining Center Gantry Machining Center China Cnc Lathe Machine for Mold Making
| type | VERTICAL | table travel (x) (mm) | 1100 |
| table travel (y) (mm) | 650 | table travel (z) (mm) | 600 |
| repeatability (x/y/z) (mm) | ±0.002 | positioning accuracy | ±0.002 |
| spindle taper | BT40 | no. of spindles | Single |
| tool magazine capacity | other | machining capacity | Heavy Duty |
| voltage | 380 V | table size | 1200x600 |
| video outgoing-inspection | Provided | min. time of tool change(s) | 2 |
| key selling points | Automatic, Energy Saving, High-Accuracy | weight (t) | 5.9 |
| max. table load(kg) | 800 | range of spindle speed | 8000 - 15000 |
| rapid feed speed | 130 - 730 | CNC or Not | vertical machining center series |
| Machine Type | vertical machine | Product name | Metal Cnc Lathe Machine Center Series for Mold Making |
| Function | Machining Metal | Tool Change Time | 2s |
| Color | Customized Color Acceptable | Usage | Metal Parts Machining |
| Spindle Diameter | BT40 | Keyword | Vertical Equipment Industrial CNC Lathe Center Machine Tool |
| Machine weight | 5.9T |
