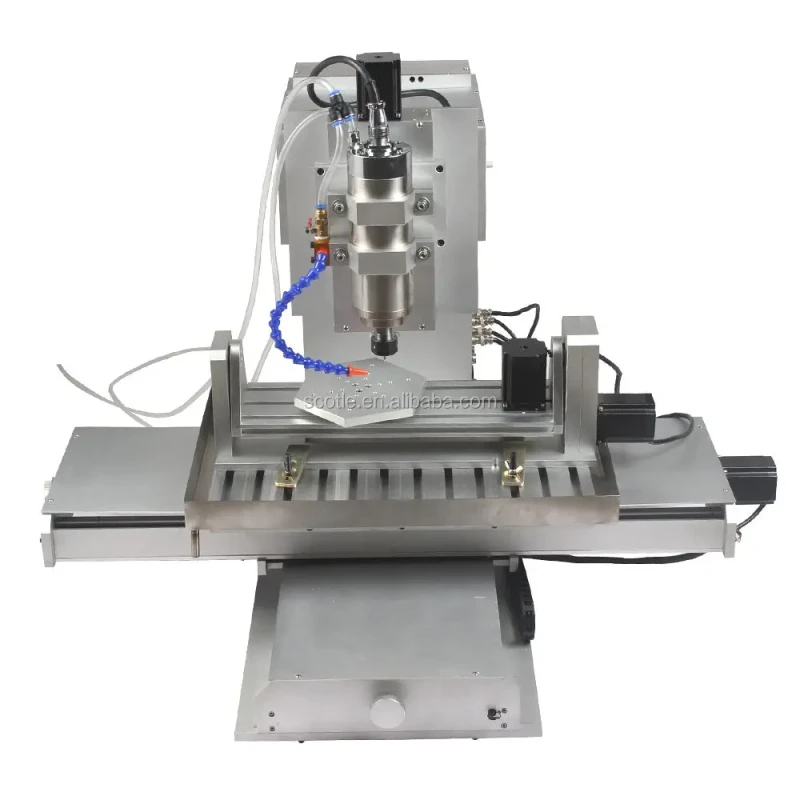

Low Cost Available CNC Milling Machine 6040 5 Axis CNC Vertical Milling Machine
Low Cost Available CNC Milling Machine 6040 5 Axis CNC Vertical Milling Machine
| Working Table Size(mm) | 600*400 | number of axes | 5 |
| voltage | 220V/110V | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Competitive Price |
| core components | Bearing, Motor, Pump, Other | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 2.2 | weight (kg) | 115 |
| range of spindle speed(r.p.m) | 1 - 24000 rpm | positioning accuracy (mm) | 0.03 mm(0in) |
| travel (x axis)(mm) | 600 mm(23.62in) | travel (y axis)(mm) | 400 mm(15.75in) |
| repeatability (x/y/z) (mm) | 0.03 mm(0in) | Spindle Motor Power (kw) | 2.2 |
| dimension(l*w*h) | 970*810*790mm(38.19*31.89*31.10in) | Effective Stroke | 600x400x(150)mm |
| Repeat positioning accuracy | 0.01mm | Processing speed | 0-4000mm/minute |
| table maximum load | 15kg | material | Stainless steel tailgate |
| Input Poewr | 220AC power supply | Output Current | Drive 4.5A (peak 5A) |
| Driven approach | Bipolar constant current PWMdrive output | Drive motor | 57x78 steper motors, two-phase 4 wire stepper motor |
| water-cooled frequency spindle | 1500w/2200w |
