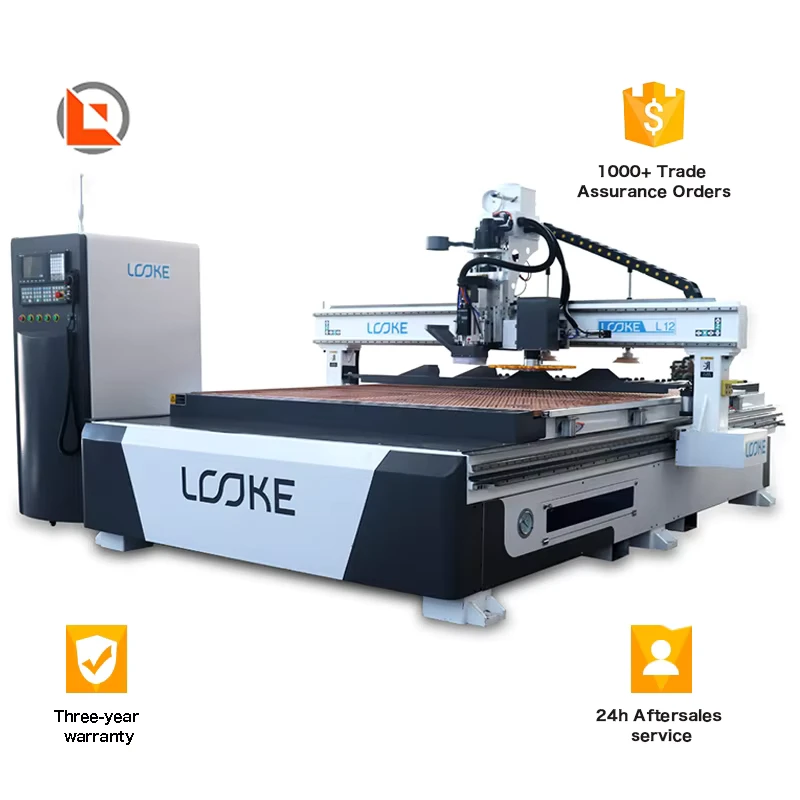

Large Size 1325 1530 2030 2040 3D Disc ATC CNC Router Wood Acrylic Woodworking Engraving Machine for Furniture
Large Size 1325 1530 2030 2040 3D Disc ATC CNC Router Wood Acrylic Woodworking Engraving Machine for Furniture
| Working Table Size(mm) | 1300×2500 | number of axes | 4 |
| voltage | 220V/380V | machine type | CNC Router |
| No. of Spindles | ATC | key selling points | Easy To Operate |
| core components | Spindle | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 10 | weight (kg) | 1350 |
| range of spindle speed(r.p.m) | 12000 - 24000 rpm | positioning accuracy (mm) | 0.03 mm(0in) |
| travel (x axis)(mm) | 1300 mm(51.18in) | travel (y axis)(mm) | 2500 mm(98.43in) |
| repeatability (x/y/z) (mm) | 0.03 mm(0in) | Spindle Motor Power (kw) | 9.0KW(12.07hp) |
| dimension(l*w*h) | 3500*1850*1600mm(137.80*72.83*62.99in) | Control system | Syntec FC control system |
| Spindle | 9.0KW ATC air cooling spindle | Application | Engraving |
| Name | ATC CNCRouter | Motor | YASKAWA Servo motor |
| Working area | 1300x2500mm | Spindle power | 9.0KW |
| Software | Yunxi | Transmission | XY-axis:rack Z-axis: pneumatic |
| Weight | 1350kg | Condition | New |
| Warranty of core components | 9 months |
