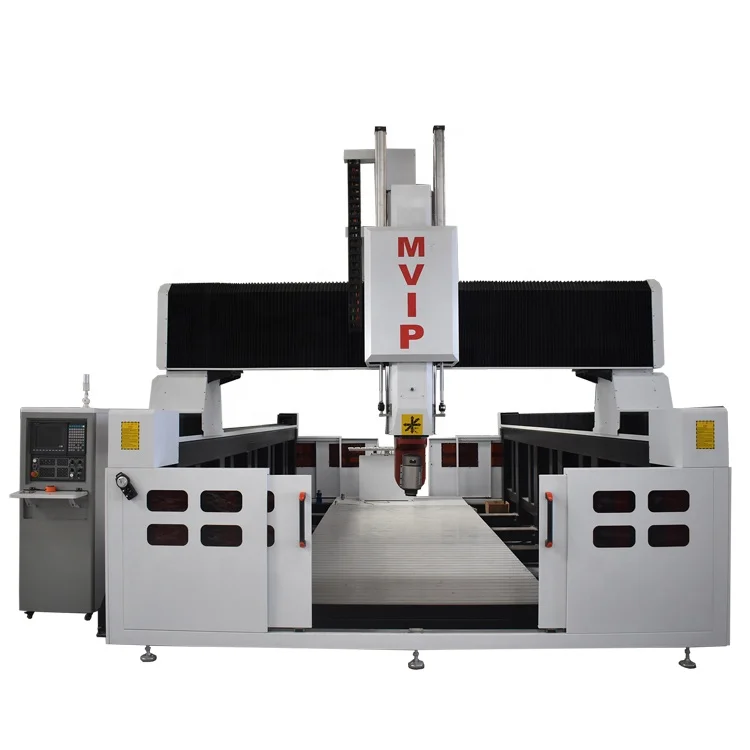

Large Machining Center 5 axis CNC Milling Machine Manufacturer Horizontal Vertical Machining Center Milling Machine
Large Machining Center 5 axis CNC Milling Machine Manufacturer Horizontal Vertical Machining Center Milling Machine
| Working Table Size(mm) | 2000×4000 | number of axes | 5 |
| voltage | 220/380/440 | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Multifunctional |
| core components | Bearing, Motor, Gear, PLC, Engine | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 22 | weight (kg) | 8000 |
| range of spindle speed(r.p.m) | 6000 - 18000 rpm | positioning accuracy (mm) | 0.02 mm(0in) |
| travel (x axis)(mm) | 2000 mm(78.74in) | travel (y axis)(mm) | 4000 mm(157.48in) |
| repeatability (x/y/z) (mm) | 0.02 mm(0in) | Spindle Motor Power (kw) | 17kw(22.80hp) |
| Function | Cutting Engraving Carving Milling | Product name | 5 Axis Cnc Router |
| Working area | 2000*4000mm | Spindle | 17KW |
| Control system | Taiwan Syntec Controller | Motor and driver | Japan Yaskawa Sevor Motor |
| Transmission | XY with original HIWIN guide rail,Z with TBI ball screw | Table Surface | Thick T- slot table |
| Guide rail | HIWIN Square Guide Rail(option PMT. CSK | Controller | Synthec Control System |
