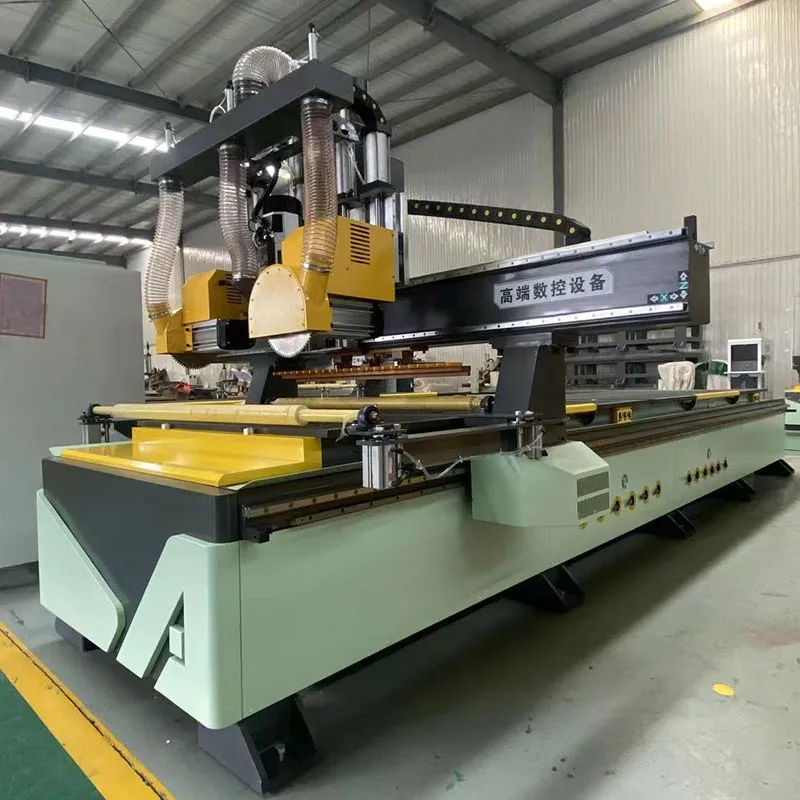

Large 3 Axis Vertical CNC Router 3D Wood & Metal Machining with Automatic Tool Changer & Windows Control System
Large 3 Axis Vertical CNC Router 3D Wood & Metal Machining with Automatic Tool Changer & Windows Control System
| number of axes | 3 | voltage | 380V/220V |
| machine type | CNC Router | No. of Spindles | Multi |
| key selling points | Good quality products | Accessory Type | Dust collection |
| core components | Motor, Gear, Engine, Spindle | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 2600 | range of spindle speed(r.p.m) | 1 - 24000 rpm |
| positioning accuracy (mm) | 0.01 | travel (x axis)(mm) | 1220 |
| travel (y axis)(mm) | 2750 | repeatability (x/y/z) (mm) | 0.01 |
| Spindle Motor Power (kw) | 9 | dimension(l*w*h) | 4500*2300*2200mm(177.17*90.55*86.61in) |
| Product name | SS-A19 Cnc Router | Keywords | ATC Woodworking Cnc Router |
| Spindle | 9kw ATC Spindle | Working area | 1300x2800mm |
| Spindle power | 9.0kw ATC Air Cooling | Motor | Servo Motor |
| Inverter | 11kw Fuling Inverter | Guide rail | Square Guide Rail |
| Model | 1328 Router Machine | Working Voltage | 220/380V |
