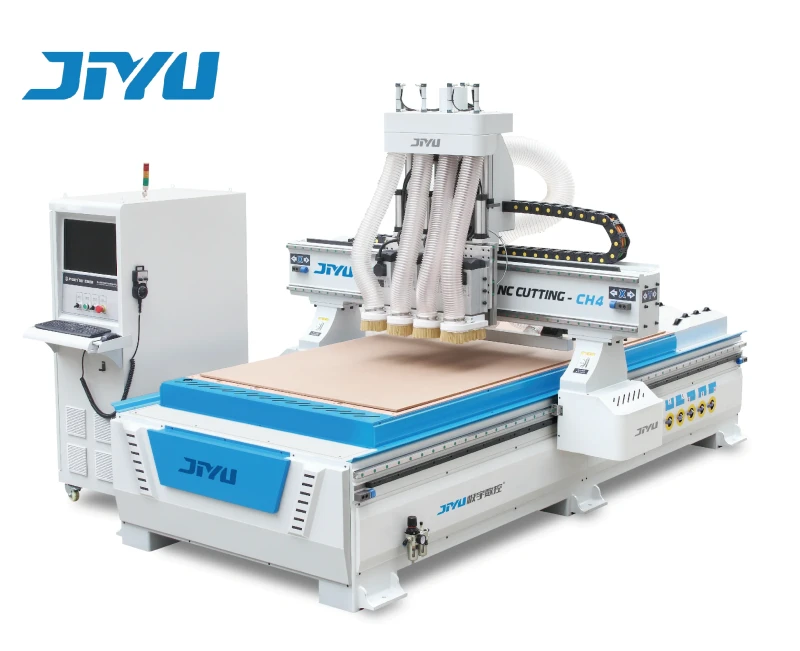

JIYU CH4 CNC Nesting Cutting Machine 4 Axis ATC CNC Router Machine for Wood Cabinet Furniture Making

JIYU CH4 CNC Nesting Cutting Machine 4 Axis ATC CNC Router Machine for Wood Cabinet Furniture Making
  • JIYU CH4 CNC Nesting Cutting Machine 4 Axis ATC CNC Router Machine for Wood Cabinet Furniture Making

    • JIYU CH4 CNC Nesting Cutting Machine 4 Axis ATC CNC Router Machine for Wood Cabinet Furniture Making

    Request a Quote
    Working Table Size(mm)1300×2500number of axes4
    voltage380Vmachine typeCNC Router
    No. of Spindlesotherkey selling pointsMultifunctional
    core componentsMotorcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)24weight (kg)1500
    range of spindle speed(r.p.m)18000 - 24000 rpmpositioning accuracy (mm)0.01
    travel (x axis)(mm)2440travel (y axis)(mm)1220
    repeatability (x/y/z) (mm)0.01Spindle Motor Power (kw)6
    dimension(l*w*h)3700*2350*2200mm(145.67*92.52*86.61in)Working area1300*2500
    X/Y/Z axis stroke1300*2500*200Precision0.15mm
    Repeat positioning accuracy0.05mmTransmission formX,Y rack,Z screw rod
    Maximum empty speed60000mm/minMaximum working speed20000mm/min
    Run commandG Code
