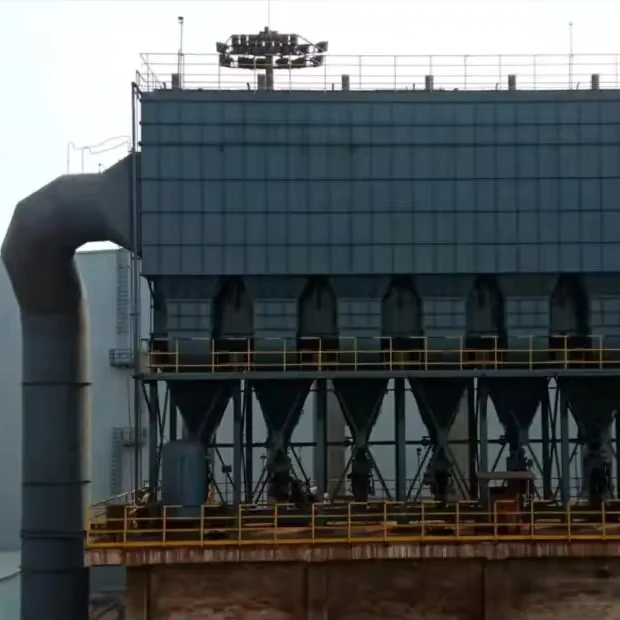

JED Central Bag Dust Collector System with Automatic Ash Removal Industrial Dust Control Equipment for Production Line

JED Central Bag Dust Collector System with Automatic Ash Removal Industrial Dust Control Equipment for Production Line
  • JED Central Bag Dust Collector System with Automatic Ash Removal Industrial Dust Control Equipment for Production Line

    • JED Central Bag Dust Collector System with Automatic Ash Removal Industrial Dust Control Equipment for Production Line

    Request a Quote
    conditionNewAir Volume2900-4300(m³/h)
    Total Filtration Area48(m)²Filtration Velocity0.8-2.0(m/min)
    Number of Filter Bags64Inlet Gas Temperature≤120℃
    System Resistance≤1200(Pa)Inlet Dust Concentration<200(g/m³)
    Outlet Emission Concentration≤10(mg/m³)Compressed Air Pressure for Cleaning0.4~0.7(MPa)
    Compressed Air Consumption0.2(m³/min)
