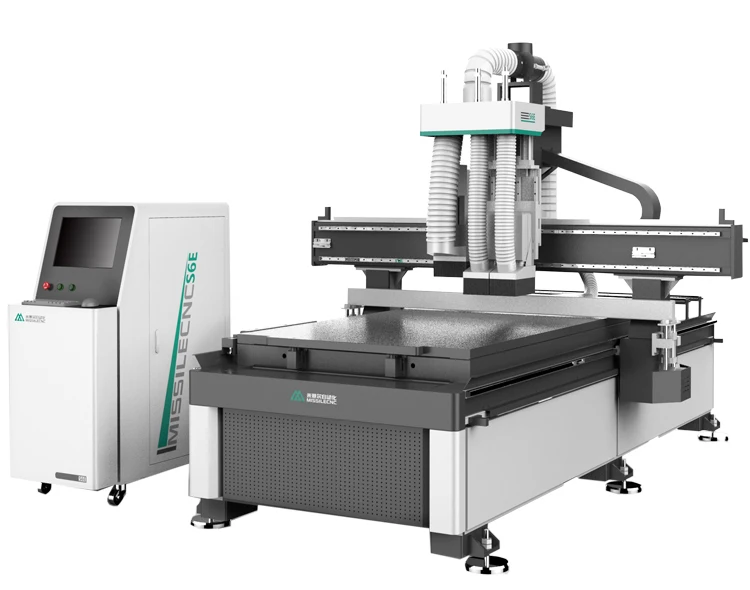

Intelligent Furniture CNC Nesting Machine 1325 CNC Wood Router

Intelligent Furniture CNC Nesting Machine 1325 CNC Wood Router
  • Intelligent Furniture CNC Nesting Machine 1325 CNC Wood Router

    • Intelligent Furniture CNC Nesting Machine 1325 CNC Wood Router

    Request a Quote
    Working Table Size(mm)1300x2500x200mm(51.18x98.43x7.87in)number of axes3
    voltageAC380V/50HZmachine typeNesting CNC Router
    No. of SpindlesATCkey selling pointsMultifunction
    core componentsMotor, Pump, Other, Gearbox, Spindle, Driver, Invertercnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)3800range of spindle speed(r.p.m)1000 - 18000 rpm
    positioning accuracy (mm)0.05 mm(0in)travel (x axis)(mm)1300 mm(51.18in)
    travel (y axis)(mm)2500 mm(98.43in)repeatability (x/y/z) (mm)0.05 mm(0in)
    Spindle Motor Power (kw)9kw(12.07hp)Working area1300*2500*200mm
    Structuresquare tube welded structureTable surfacedouble layer cavity type vacuum table
    Control systemSYNTEC 6MDTransmissionX/Y axis-- rack and pinion gear, Z axis-- ball screw
    Guide railTaiwan PMI 25mm square guide railInverterFrance MOTO
    Drive&MotorYASKAWA Servo motor and driverBoring head9 sets (5+4) vertical drilling
    MOQ1 set
