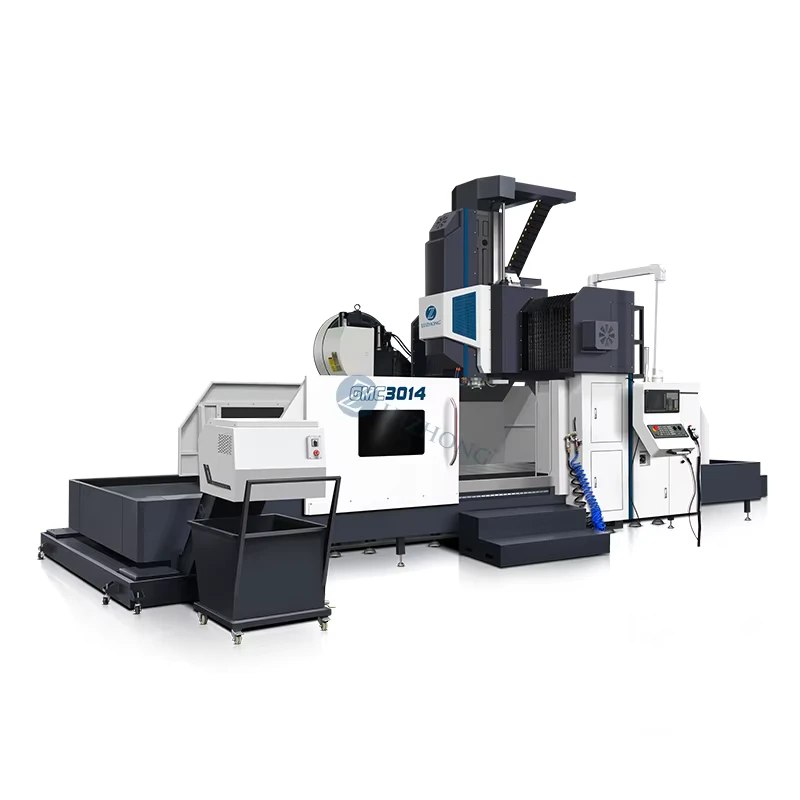

Ideal for Large Molds Automotive Body Panels Aerospace Structural Components CNC Gantry Milling Machine GMC3014

Ideal for Large Molds Automotive Body Panels Aerospace Structural Components CNC Gantry Milling Machine GMC3014
  • Ideal for Large Molds Automotive Body Panels Aerospace Structural Components CNC Gantry Milling Machine GMC3014

    • Ideal for Large Molds Automotive Body Panels Aerospace Structural Components CNC Gantry Milling Machine GMC3014

    Request a Quote
    typeGantrytable travel (x) (mm)3000
    table travel (y) (mm)1500table travel (z) (mm)800
    repeatability (x/y/z) (mm)0.005positioning accuracy±0.01
    spindle taperBT40, BT50no. of spindlesSingle
    tool magazine capacity16, 20, 24cnc control systemFANUC
    machining capacityHeavy Dutyvoltage220V/380V, Customizable
    table size1200*3100machinery test reportProvided
    video outgoing-inspectionProvidedmin. time of tool change(s)3
    key selling pointsAutomatic, Multifunctional, High-Accuracy, Easy To Operateweight (t)21.5
    max. table load(kg)5500dimension(l*w*h)8700*4200*4200mm(342.52*165.35*165.35in)
    range of spindle speed0 - 6000 r.p.mrapid feed speed1 - 15000 mm/min(0.04-590.55in/min)
    Gantry width/passing heightW:1500/H:1030mmDistance between spindle nose and table150~950mm
    T slot(number-width*pitch)7-22*170Spindle taperBT50 /190
    Rapid traverse speed15 m/minCutting feed speed10 m/min
    Main motor power15/18.5 kWTool magazineArm24
