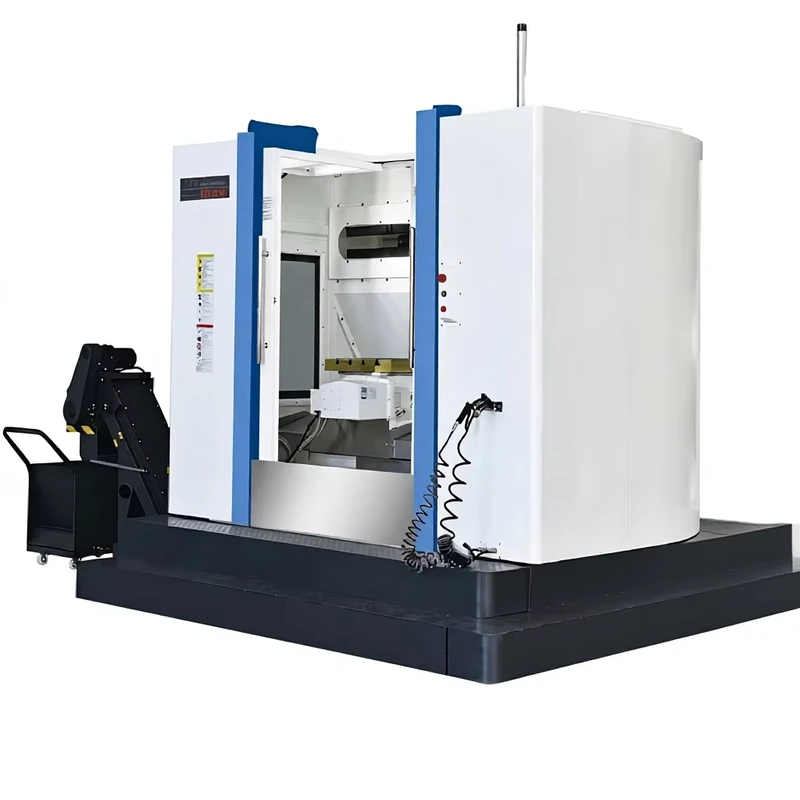

Horizontal Machining Center with Automatic Tool Changer and High Rigidity Structure

Horizontal Machining Center with Automatic Tool Changer and High Rigidity Structure
  • Horizontal Machining Center with Automatic Tool Changer and High Rigidity Structure

    • Horizontal Machining Center with Automatic Tool Changer and High Rigidity Structure

    Request a Quote
    typeHorizontaltable travel (x) (mm)1190
    table travel (y) (mm)1020table travel (z) (mm)1050
    repeatability (x/y/z) (mm)±0.003/300positioning accuracy±0.005/300
    spindle taperBT50no. of spindles3
    tool magazine capacity24, 32cnc control systemSiemens
    machining capacityHeavy Dutyvoltage380 V
    table size1000*1000machinery test reportProvided
    video outgoing-inspectionProvidedmin. time of tool change(s)2.4
    key selling pointsHigh-Accuracyweight (t)13
    max. table load(kg)1500dimension(l*w*h)7875*4600*3405
    range of spindle speed0 - 6000rapid feed speed10 - 15000
