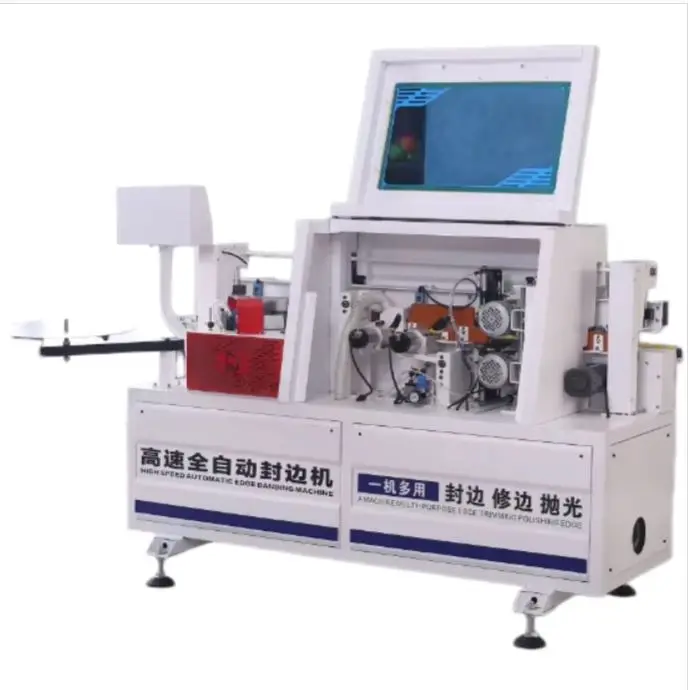

High Speed Fully Automatic Edge Banding Machine with Edge Trimming Buffing for Cabinet Wood Panel Processing

High Speed Fully Automatic Edge Banding Machine with Edge Trimming Buffing for Cabinet Wood Panel Processing
  • High Speed Fully Automatic Edge Banding Machine with Edge Trimming Buffing for Cabinet Wood Panel Processing

    • High Speed Fully Automatic Edge Banding Machine with Edge Trimming Buffing for Cabinet Wood Panel Processing

    Request a Quote
    typeEdge Banding MachineusagePlywood Production
    voltage220 V, 380 VPlatform Dimensions1500mm*3000mm(59.06in*118.11in)
    core componentsBearing, Motor, Pump, Gear, PLC, Gearbox, Pressure VesselMaterial TypePVC
    video outgoing-inspectionProvidedkey selling pointsEasy To Operate
    power (kw)4.9weight (kg)320
    dimension(l*w*h)2200*650*1250mm(86.61*25.59*49.21in)Product NameGD1800 High-Speed Fully Automatic Edge Banding Machine
    Power Supply VoltageThree-phase four-wire 380V (220V optional)Air Source Pressure0.4-0.6MPa
    Total Power4.9KWMinimum Board Length200mm
    Edge Banding Power/Speed160w 0-14m/minEdge Trimming Power/Speed800w*2 24000r/min
    Polishing Power/Speed400w*2Conveyor Power/Speed180w 0-14m/min
    Edge Banding Tape Height10-50mm
