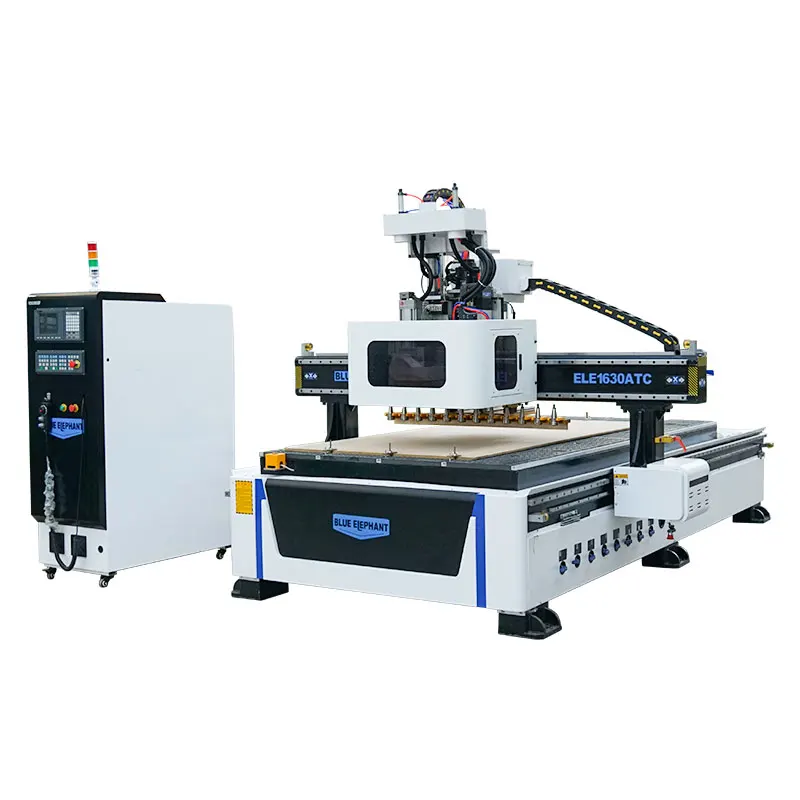

High Speed ATC Vertical Drilling CNC Router

High Speed ATC Vertical Drilling CNC Router
  • High Speed ATC Vertical Drilling CNC Router

    • High Speed ATC Vertical Drilling CNC Router

    Request a Quote
    Working Table Size(mm)1300×2500number of axes1
    voltageAC380V/50HZ or optionmachine typeCNC Router
    No. of SpindlesATCkey selling pointsMultifunctional
    core componentsMotor, Pumpcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)2000range of spindle speed(r.p.m)1 - 24000 rpm
    positioning accuracy (mm)0.02 mm(0in)travel (x axis)(mm)1300 mm(51.18in)
    travel (y axis)(mm)2500 mm(98.43in)repeatability (x/y/z) (mm)0.02 mm(0in)
    dimension(l*w*h)3800*2300*1900Control systemTaiwan Syntec control system
    ApplicationWood Working, mdf, cylinder objects etcTransmissionABBA Linear square guide and TBI ball screw
    ReducerJapan Shimpo reducerMotorJapan YASKAWA servo system 1KW
    Working area1600*3000*150mmSoftwareUcancam / ArtCam/TYPE3
    SpindleOriginal Italy HSD spindle 9.6KW ATC spindleDrill headOriginal Italy HSD drill bank
    Tool magazine12pcs linear tool changerConditionNew
    Applicable IndustriesMachinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Food Shop, Construction works , Energy & MiningWarranty of core components1 Year
