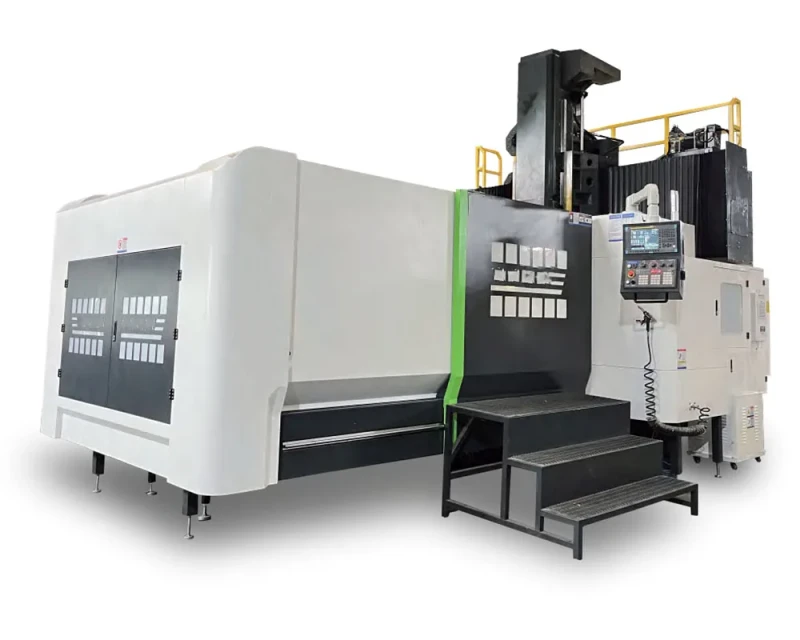

High Rigidity TSMV 5041 10K Gantry Machining Center Mitsubishi Controller CNC Router Vertical Milling Machine
High Rigidity TSMV 5041 10K Gantry Machining Center Mitsubishi Controller CNC Router Vertical Milling Machine
| type | Gantry | table travel (x) (mm) | 5000 |
| table travel (y) (mm) | 4300 | table travel (z) (mm) | 1300 |
| repeatability (x/y/z) (mm) | ±0.015 | positioning accuracy | ±0.02 |
| spindle taper | BBT50 | no. of spindles | 1 |
| tool magazine capacity | 24 | cnc control system | Mitsubishi |
| machining capacity | Heavy Duty | voltage | 380 V |
| table size | 4400*3000 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 4.9 |
| key selling points | High Safety Level, High-Accuracy, Eco-Friendly, Energy Saving, High Productivity, Long Service Life, Easy To Operate | weight (t) | 68 |
| max. table load(kg) | 30000 | dimension(l*w*h) | 11600*8050*6420 |
| range of spindle speed | 0 - 10000 | rapid feed speed | 0 - 10000 |
