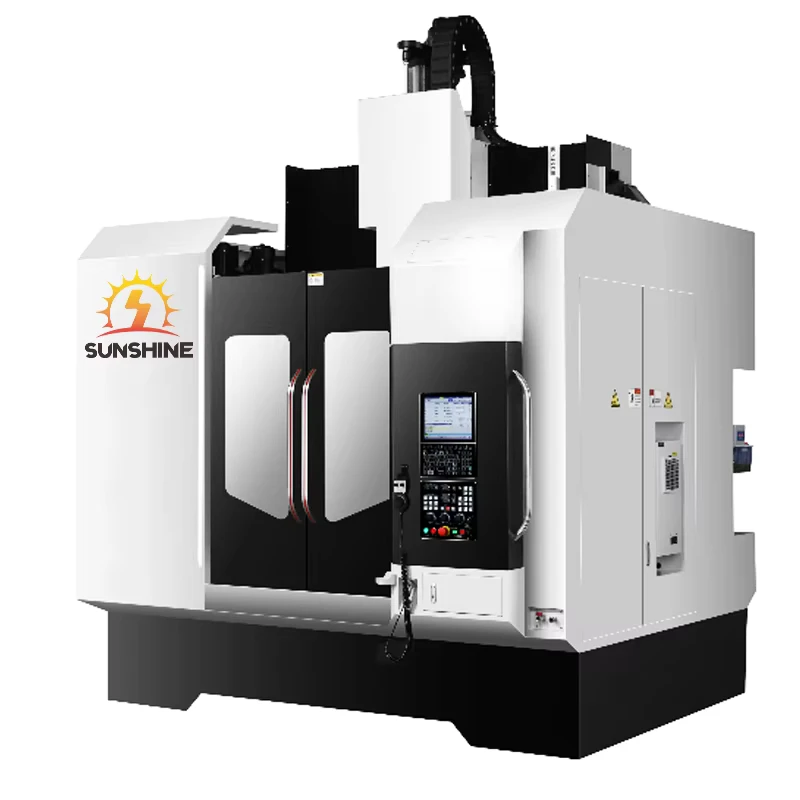

High Rigidity Five Axis Vertical Machining Center CMC500 Is Suitable for Complex Parts Processing CNC Milling Machine
High Rigidity Five Axis Vertical Machining Center CMC500 Is Suitable for Complex Parts Processing CNC Milling Machine
| type | VERTICAL | table travel (x) (mm) | 550 |
| table travel (y) (mm) | 450 | table travel (z) (mm) | 400 |
| repeatability (x/y/z) (mm) | ±0.004 | positioning accuracy | ±0.005 |
| spindle taper | BBT40 | no. of spindles | Single |
| tool magazine capacity | 24 | cnc control system | FANUC |
| machining capacity | Heavy Duty | table size | 630X500 |
| machinery test report | Provided | video outgoing-inspection | Provided |
| min. time of tool change(s) | 1.55 | key selling points | Multifunctional |
| weight (t) | 6.8 | max. table load(kg) | 200 kg(440.92lb) |
| dimension(l*w*h) | 3500X3400X2700 | range of spindle speed | 1 - 10000 r.p.m |
| rapid feed speed | 1 - 10000 mm/min(0.04-393.70in/min) | Product name | 5 Axis CNC Milling Machine |
| Machine Type | CNC Vertical Machine Centers | CNC or Not | CNC Systemn |
| Control system | SIEMENS GSK FANUC (optional) | Workbench T-slot | 14 |
| Spindle power | 7.5 | Spindle torque | 35.8/70 |
| Tool magazine type | Disc | Tool magazine capacity | 24 |
| Tool change time (T-T) | 1.55 |
