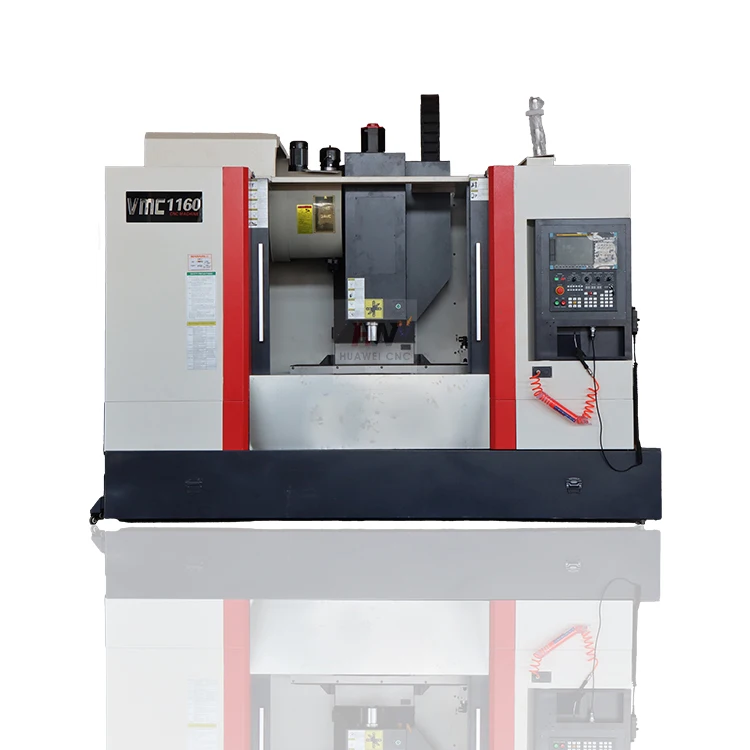

High Quality New VMC1160 5 Axis Vertical CNC Machine Center with GSK Control System and Taiwan Linearway Guideway

High Quality New VMC1160 5 Axis Vertical CNC Machine Center with GSK Control System and Taiwan Linearway Guideway
  • High Quality New VMC1160 5 Axis Vertical CNC Machine Center with GSK Control System and Taiwan Linearway Guideway

    • High Quality New VMC1160 5 Axis Vertical CNC Machine Center with GSK Control System and Taiwan Linearway Guideway

    Request a Quote
    typeVERTICALtable travel (x) (mm)1100
    table travel (y) (mm)600table travel (z) (mm)600
    repeatability (x/y/z) (mm)±0.005positioning accuracy±0.001
    spindle taperBT40-150no. of spindlesSingle
    tool magazine capacity24cnc control systemGSK
    machining capacityHeavy Dutyvoltage380V 220V 430V
    table size1200x600machinery test reportProvided
    video outgoing-inspectionProvidedmin. time of tool change(s)2
    key selling pointsCompetitive Priceweight (t)6.3
    max. table load(kg)800dimension(l*w*h)2940*2300*2550
    range of spindle speed1 - 8000 r.p.mrapid feed speed1 - 10000 mm/min(0.04-393.70in/min)
    Machine Typevmc vertical machining centerProduct nameshandong HUAWEI VMC1160
    ColorCustom-madeGuideway typeTaiwan Linearway
    T Slot5-18*100Key wordvmc 5 axis vmc 1160 taiwan vertical machining center
    ConditionNewMarketing TypeOrdinary Product
    Warranty of core components1 Year
