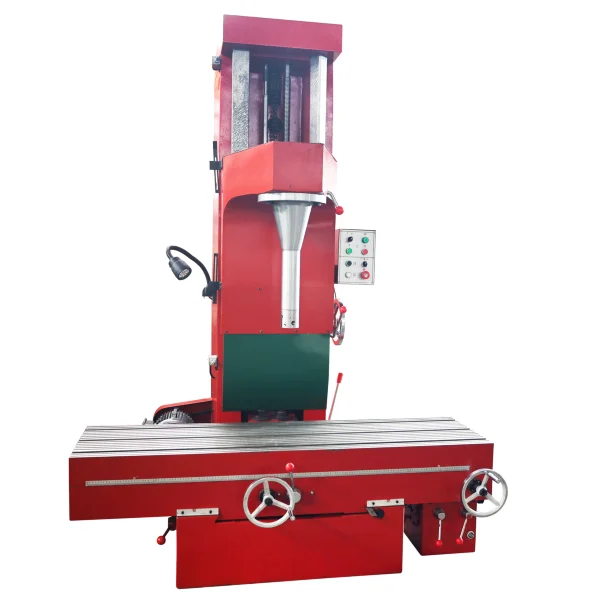

High Quality Cylinder Boring Machine

High Quality Cylinder Boring Machine
  • High Quality Cylinder Boring Machine

    • High Quality Cylinder Boring Machine

    Request a Quote
    typeboring machinecnc or notCNC
    table size (mm)1680*450spindle motor power(kw)2.4/3
    number of axes4voltage220
    no. of spindlesSinglemachinery test reportProvided
    video outgoing-inspectionProvidedcore componentsEngine, Motor, Gear
    key selling pointsBORINGtable travel (x) (mm)150 mm(5.91in)
    table travel (y) (mm)1450 mm(57.09in)table travel (z) (mm)800 mm(31.50in)
    range of spindle speed(r.p.m)140 r.p.mweight (t)3.5 T(3.86short tons )
    max. table load(kg)400travel (w-axis) (mm)800 mm(31.50in)
    positioning accuracy (x axis) mm0.005positioning accuracy (y axis) mm0.005
    positioning accuracy (z axis) mm0.005dimension(l*w*h)2680*1500*2325
    Product nameCylinder Boring MachineBoring diameter range35- 180mm
    Max. boring depth650mmThe rotational speed of spindle140-610 r/min
    Dimension of worktable1680 * 450mmTransverse travel of table150mm
    Workbench longitudinal travel1450Packing dimensions1830*1400*2480mm
    Net weight3500kggross weight3700kg
