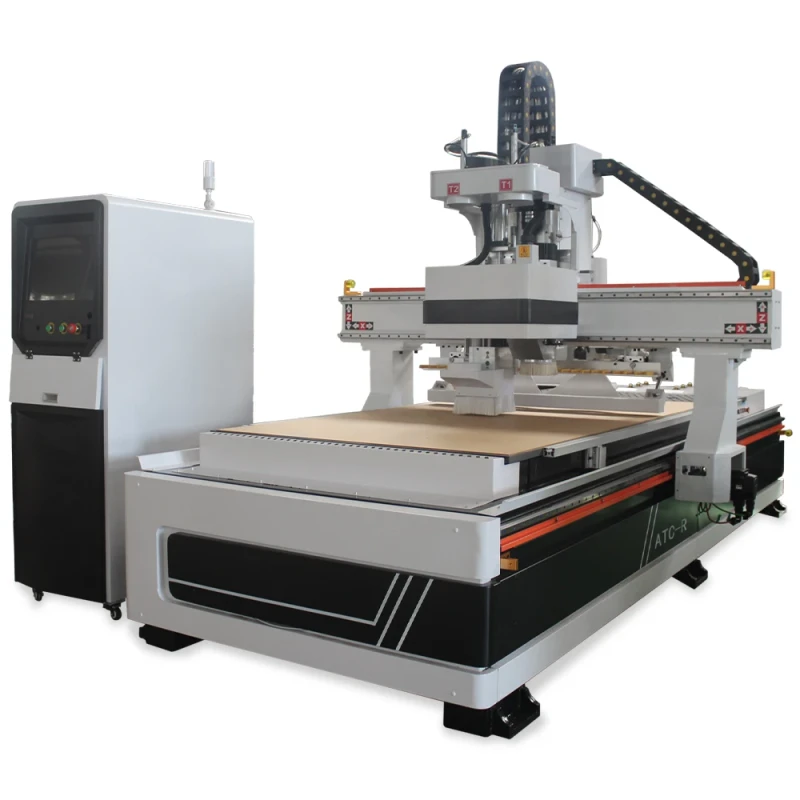

High Quality 4 Axis 5x10 CNC Wood Router Machine Horizontal and Vertical Axis with ATC Spindles and Motor Core Components
High Quality 4 Axis 5x10 CNC Wood Router Machine Horizontal and Vertical Axis with ATC Spindles and Motor Core Components
| Working Table Size(mm) | 1500×3000 | number of axes | 3 |
| voltage | 380V, 3p, 50hz | machine type | CNC Router |
| No. of Spindles | ATC | key selling points | High Productivity |
| core components | Motor, Pump, Other, Engine | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 20 | weight (kg) | 2600 |
| range of spindle speed(r.p.m) | 1 - 24000 rpm | positioning accuracy (mm) | 0.02 mm(0in) |
| travel (x axis)(mm) | 1300 mm(51.18in) | travel (y axis)(mm) | 3000 mm(118.11in) |
| repeatability (x/y/z) (mm) | 0.02 mm(0in) | Spindle Motor Power (kw) | 9KW(12.07hp) |
| dimension(l*w*h) | 3600*2200*1950MM(141.73*86.61*76.77in) | Product name | R9 ATC CNC Router Machine |
| Application | Kitchen Cabinet Doors Furnitures Making | Tool magazine | Linear Tool Magazine 12-16 tools |
| Spindle | HQD 9kw ATC Spindle+HQD 4*5 drill package | Motor | Leadshine 1500W AC Servo Motor |
| Control system | Taiwan LNC/SYNTEC Control System | Auto unloading | Auto unloading function |
| Transmission | XY-axis:HICK rack Z axis:TBI 2510 Ball Screw | Guide rail | Taiwan HIWIN 30 Square Guide Rail |
| Drive motor | E&T/Fuling 11kw Driver |
