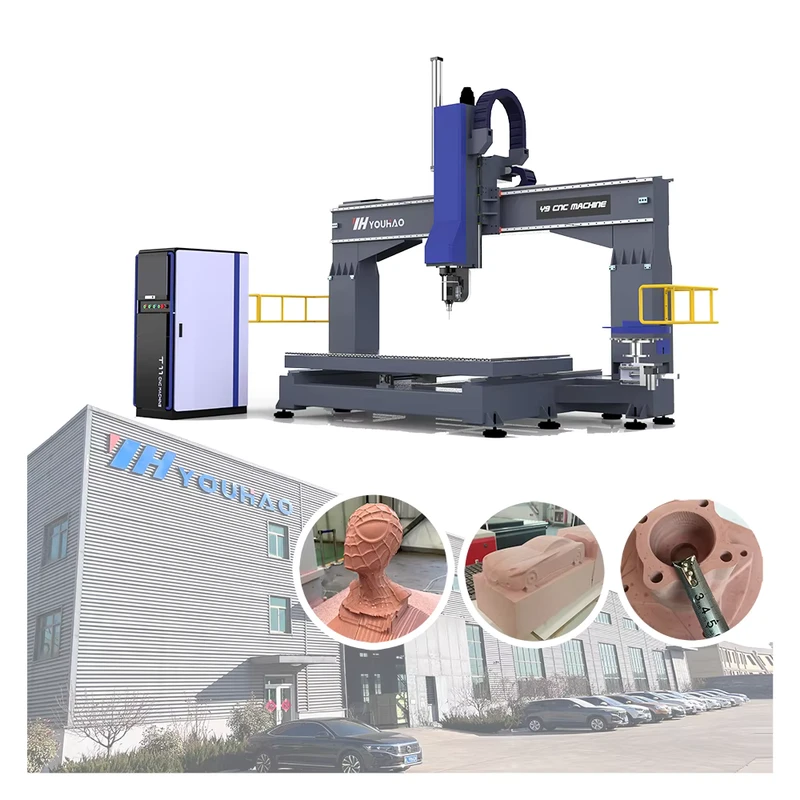

High Precision Wood Sculpture 5 Axis 3d CNC Milling Wood Router Machinery For Wood

High Precision Wood Sculpture 5 Axis 3d CNC Milling Wood Router Machinery For Wood
  • High Precision Wood Sculpture 5 Axis 3d CNC Milling Wood Router Machinery For Wood

    • High Precision Wood Sculpture 5 Axis 3d CNC Milling Wood Router Machinery For Wood

    Request a Quote
    Working Table Size(mm)1200×1200number of axes5
    voltage380vmachine typeCNC Router
    No. of Spindles1 pcskey selling pointsEasy To Operate
    core componentsMotor, Pumpcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)3.5weight (kg)1300
    range of spindle speed(r.p.m)1 - 24000 rpmpositioning accuracy (mm)0.03 mm(0in)
    travel (x axis)(mm)1200 mm(47.24in)travel (y axis)(mm)1200 mm(47.24in)
    repeatability (x/y/z) (mm)0.02 mm(0in)Spindle Motor Power (kw)11KW(14.75hp)
    dimension(l*w*h)3250X2000X1600mmControl systemItaly OSAI control system
    ApplicationWood Foam MouldsInverterDelta Inverter
    SpindleItaly hiteco spindleWorking area1200*1200mm
    Tool magazineCarousel Tool Changer12pcsWorking tableAluminum T Slot Working Table
    ColorCustomer NeedingWorking VoltageAC380V/3PH/50Hz(option:220V)
    Guide railHiwin Square Linear Guide RailConditionNew
    Warranty of core components1 YearApplicable IndustriesWood Foam Moulds
