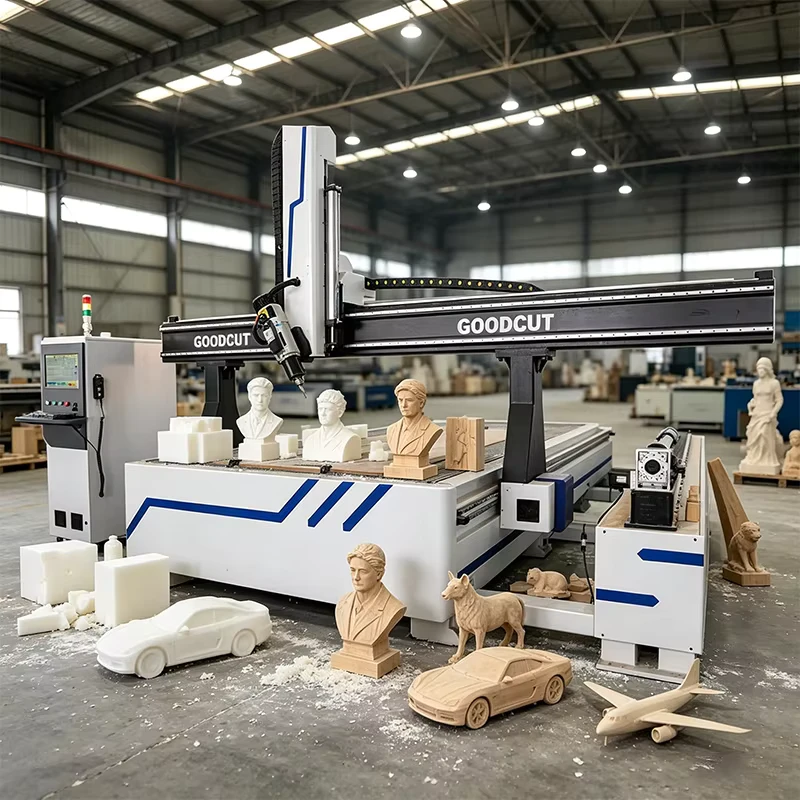

High Precision Wood Carving Machine with Rotary Axis Factory Direct

High Precision Wood Carving Machine with Rotary Axis Factory Direct
  • High Precision Wood Carving Machine with Rotary Axis Factory Direct

    • High Precision Wood Carving Machine with Rotary Axis Factory Direct

    Request a Quote
    number of axes3voltage220V/380V
    machine typeCNC RouterNo. of SpindlesATC
    key selling pointsMultifunctionalcore componentsMotor, Pump, Gear, PLC, Gearbox
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)2280
    range of spindle speed(r.p.m)1 - 24000 rpmpositioning accuracy (mm)0.02
    travel (x axis)(mm)2000travel (y axis)(mm)4000
    repeatability (x/y/z) (mm)0.01Spindle Motor Power (kw)9
    dimension(l*w*h)1300*2500*250mm(51.18*98.43*9.84in)Product nameRotary axis cnc router atc 1325 woodworking cnc machines for sale
    SpindleHSD/HQD 9kw air cooled ATC spindleControl systemTaiwan Syntec Control System
    Working area1300x2500mm, 4*8 feetTool magazine8pcs, 10pcs 12pcs linear tool change magazine
    TransmissionTaiwan HIWIN 30mm guide rails, Taiwan TBI Ball ScrewDrive motorLeadshine servo 850w, or Japanse Yaskawa servo motor driver
    Tablevacuum adsorpt + T-slotInverterFuling 11kw, Delta Inverter
    Other partspositioning cyliner, 5.5kw 2 bags dust collection, 7.5kw vacuum pump
