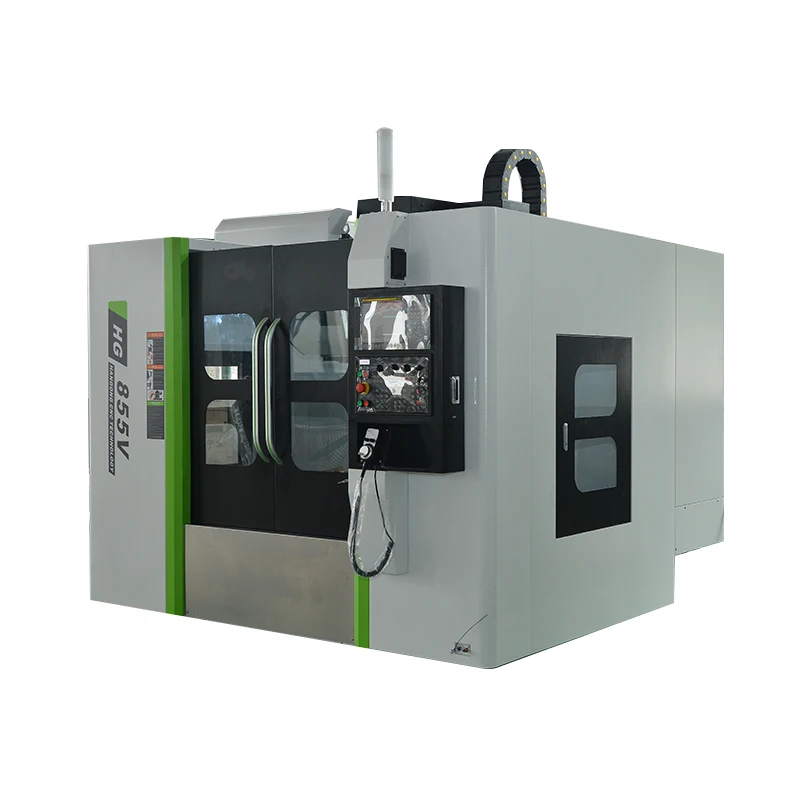

High Precision Vertical 5 Axis CNC Router VMC850 Machining Center Metal Processing CNC Milling Machine
High Precision Vertical 5 Axis CNC Router VMC850 Machining Center Metal Processing CNC Milling Machine
| type | VERTICAL | table travel (x) (mm) | 800 |
| table travel (y) (mm) | 500 | table travel (z) (mm) | 500 |
| repeatability (x/y/z) (mm) | ±0.003 | positioning accuracy | ±0.003 |
| spindle taper | BT40 | no. of spindles | Single |
| tool magazine capacity | 24 | cnc control system | GSK |
| machining capacity | Heavy Duty | voltage | 380 V, 220 V |
| table size | 1000*500 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 3 |
| key selling points | High-accuracy,Long service life.Automatic | weight (t) | 5.2 |
| max. table load(kg) | 500 | dimension(l*w*h) | 2700*2400*2500 |
| range of spindle speed | 8000 - 15000 r.p.m | rapid feed speed | 0 - 12000 |
| Product Name | machining center | Type | VERTICAL |
| Tool Magazine Capacity | 24 | Core Components | pump, motor |
