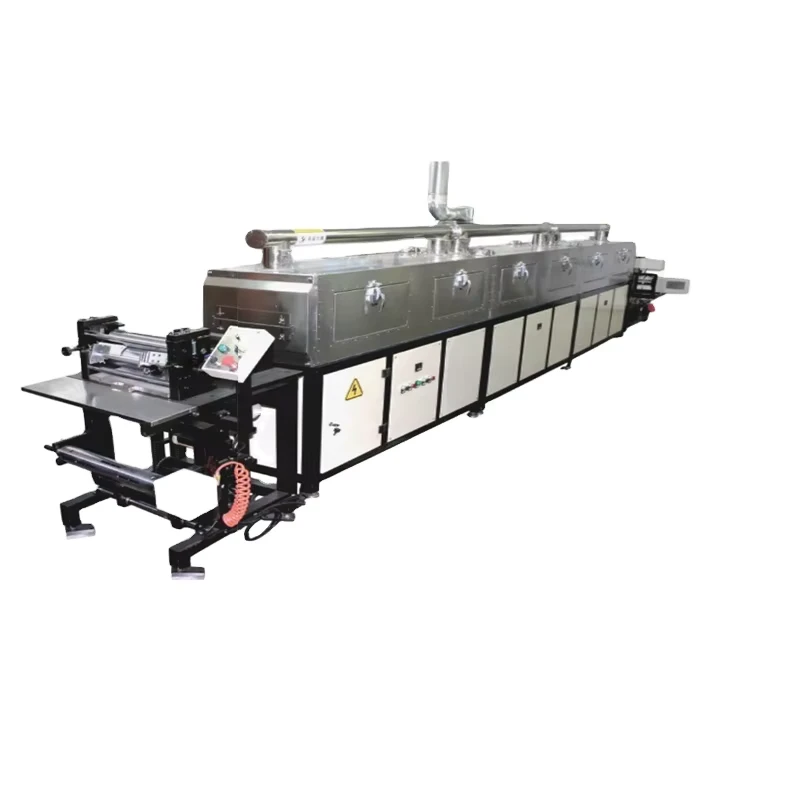

High Precision Scraper Coating Machine for PET Film Roll to Roll Coating

High Precision Scraper Coating Machine for PET Film Roll to Roll Coating
  • High Precision Scraper Coating Machine for PET Film Roll to Roll Coating

    • High Precision Scraper Coating Machine for PET Film Roll to Roll Coating

    Request a Quote
    voltage380 Vautomatic gradeAutomatic
    machinery capacityBattery productionkey machinesPLC
    Weight (KG)850power12kw(16.09hp)
    Coating methodContinuous coating / Intermittent CoatingAccuracy error of dry thicknesssingle-sided cathode: ±2.5um
    Alignment error≤±1.0mmAverage length error≤±1.0mm
    Hot air dryinghot air circulation (upper air supply)Heating methodelectric heating 800W*6=4.8KW
    Exhaust air volume1000 M3/hOven length1 meter (integrated type)
    Unwinding mechanismwith automatic correction deviceTension mechanismcoating fload roller
