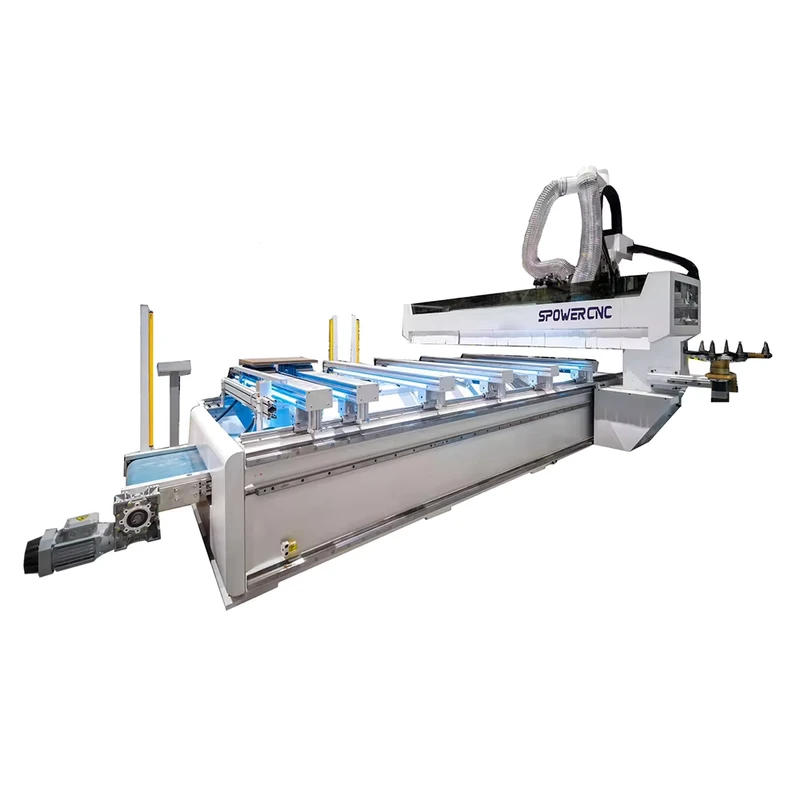

High Precision PTP CNC Processing Center for Panel Furniture Automatic Milling Machine for Cabinet Wardrobe Production Line
High Precision PTP CNC Processing Center for Panel Furniture Automatic Milling Machine for Cabinet Wardrobe Production Line
| number of axes | 3 | voltage | 380 V |
| machine type | CNC Router | No. of Spindles | ATC |
| key selling points | Multifunctional | Accessory Type | Dust collection |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 2800 | range of spindle speed(r.p.m) | 6000 - 24000 |
| positioning accuracy (mm) | 0.01 | travel (x axis)(mm) | 1300 |
| travel (y axis)(mm) | 3000 | repeatability (x/y/z) (mm) | 0.01 |
| Spindle Motor Power (kw) | 13.5 | dimension(l*w*h) | 3900*3200*2800 |
| Name | PTP cnc machining center | Model | SPM1330F |
| Working Area | 1300*3000*200mm | Spindle Power | Italy HSD air cooling spindle |
| X,Y,Z Traveling positioning accuracy | 0.01/2000mm | Drilling bank | Italy Hiteco drilling bank 9v+6h+1s |
| Drive Motors | Japan YASKAWA servo motor and drivers | Command Language | G code, M code |
| Operating System | Taiwan Syntec control system 21MA | After-sales Service Provided | Online Support |
