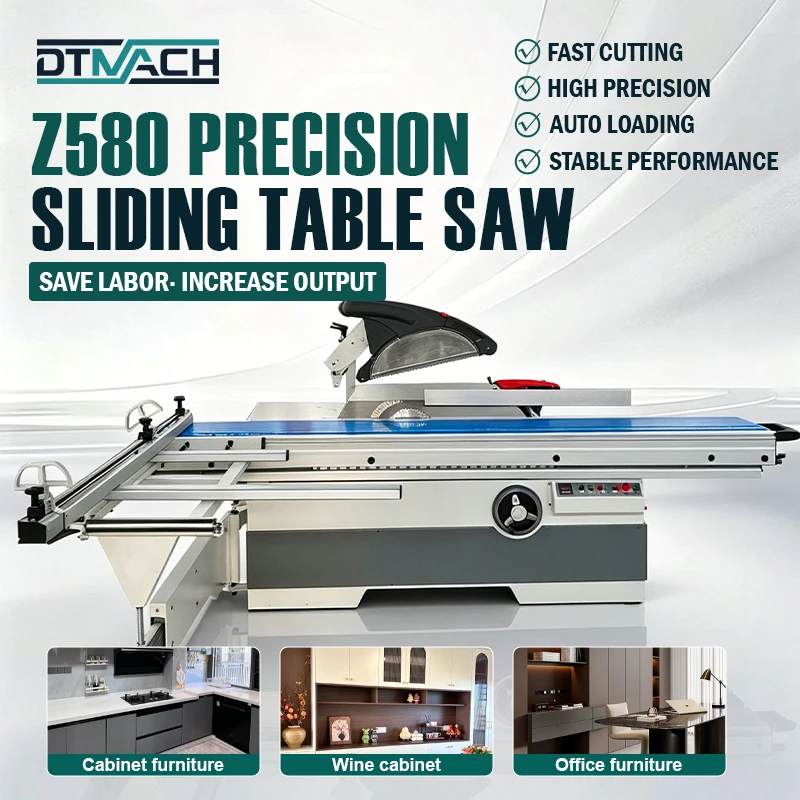

High Precision Panel Saw for Furniture Woodworking Machinery Multifunction Sliding Table Saw Machine

High Precision Panel Saw for Furniture Woodworking Machinery Multifunction Sliding Table Saw Machine
  • High Precision Panel Saw for Furniture Woodworking Machinery Multifunction Sliding Table Saw Machine

    • High Precision Panel Saw for Furniture Woodworking Machinery Multifunction Sliding Table Saw Machine

    Request a Quote
    TypePanel Sawvoltage380 V
    StyleHorizontaluseWoodworking
    core componentsMotormachinery test reportProvided
    video outgoing-inspectionProvidedweight (kg)800
    power (kw)5.5dimension(l*w*h)3350*3350*900
    Blade Diameter(mm)300Slider Table Size3200 x 388 mm
    Blade Tilt Angle0-45°Scoring Saw Diameter120 mm
    Max. Cutting Width1250 mmScoring Saw Speed7000-8000rpm
    Main Saw Blade Diameter300 mmAuxiliary Shaft Diameter20 mm
    Max. Cutting Thickness75 mm (tested up to 75 mm)Auxiliary Motor Power1.1kw
    Saw Arbor Speed4500/6000rpm
