Professional manufacturer of woodworking machinery

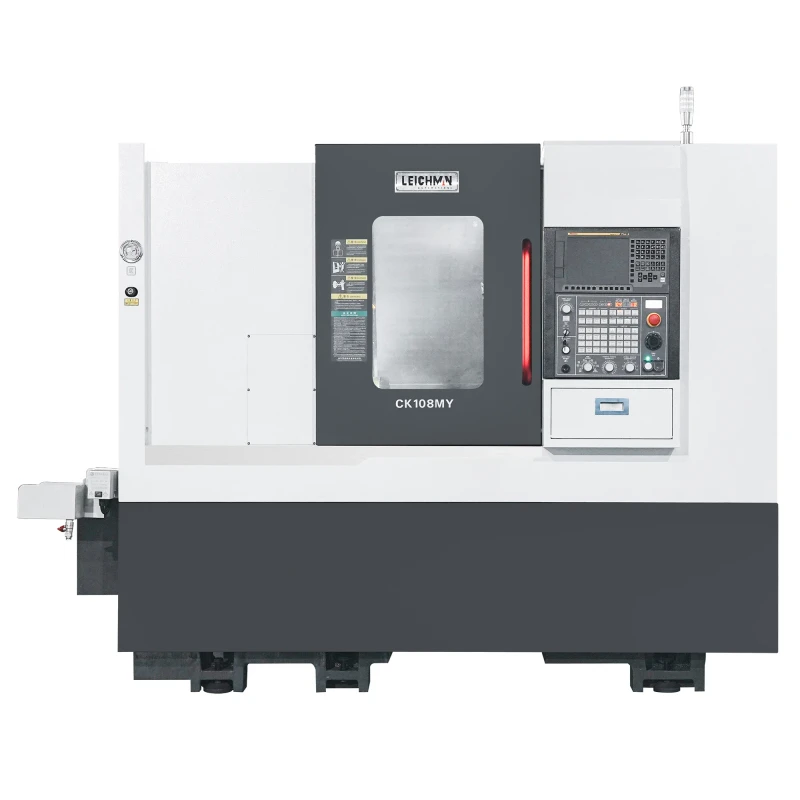

High Precision Customizable CNC Lathe Milling and Turning Machine Single Spindle CNC Tool Machine Supplier
High Precision Customizable CNC Lathe Milling and Turning Machine Single Spindle CNC Tool Machine Supplier
| type | Horizontal | max. length of workpiece (mm) | 500 |
| positioning accuracy (mm) | ±0.008 | repeatability (x/y/z) (mm) | ±0.008 |
| number of axes | 3 | cnc control system | SYNTEC |
| no. of spindles | Single | tool post stations | 12 |
| machining capacity | Medium Duty | voltage | 380 V |
| machinery test report | Provided | video outgoing-inspection | Provided |
| key selling points | Automatic, High-Accuracy, High Productivity, Easy To Operate, Flexible Manufacturing, High Rigidity | max. weight of workpiece(kg) | 0 |
| travel (x axis)(mm) | 250 | travel (z axis)(mm) | 600 |
| dimension(l*w*h) | 2620*1700*1920 | weight | 4200 |
| range of spindle speed | 0 - 4000 | cutting torque | 20 |
| CNC or Not | CNC Systemn | Function | Turning Milling Drilling Threading |
| Turret Type | BMT55-12 Station Turret | Spindle bore | 66mm |
| Chuck size | 8 Inch Chuck | Max. swing over bed | 500mm |
| Spindle nose | A2-6 | Control system | SYNTEC(Fanuc Siemens GSK optional) |
| X/Y/Z Rapid Feed Speed(mm/min) | 30mm/min | Max. Processing diameter | 400mm |
