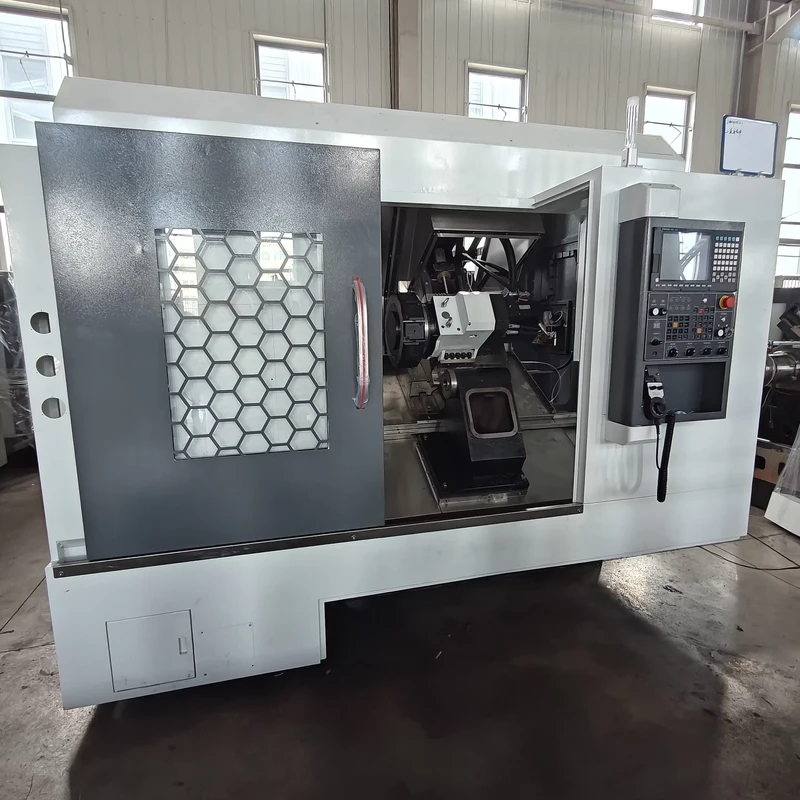

High Precision Cnc Machining Center Milling Turning Cnc Machining Manufacturing
High Precision Cnc Machining Center Milling Turning Cnc Machining Manufacturing
| type | TURNING CENTER | max. length of workpiece (mm) | 450 |
| positioning accuracy (mm) | ±0.003 | repeatability (x/y/z) (mm) | ±0.002 |
| number of axes | 3 | no. of spindles | Single |
| tool post stations | 12 | machining capacity | Medium Duty |
| voltage | 380 V | machinery test report | Provided |
| key selling points | Automatic, Competitive Price, High Safety Level | max. weight of workpiece(kg) | 150 |
| travel (x axis)(mm) | 240 | travel (z axis)(mm) | 540 |
| width of bed (mm) | 35 | dimension(l*w*h) | 3000*2000*2300 |
| weight | 4800 | range of spindle speed | 0 - 3500 |
| cutting torque | 177 | Maximum cutting length (mm) | 475 |
| Standard cutting diameter (mm) | 200 | Maximum cutting diameter (mm) | 370 |
| Guide rail angle (degrees) | 30+30 | Spindle hole diameter (mm) | 66 |
| Spindle power (kw) | 15-18 | Spindle speed (r/min) | 0-3500 |
| Milling speed (r/min) | 0-4000 |
