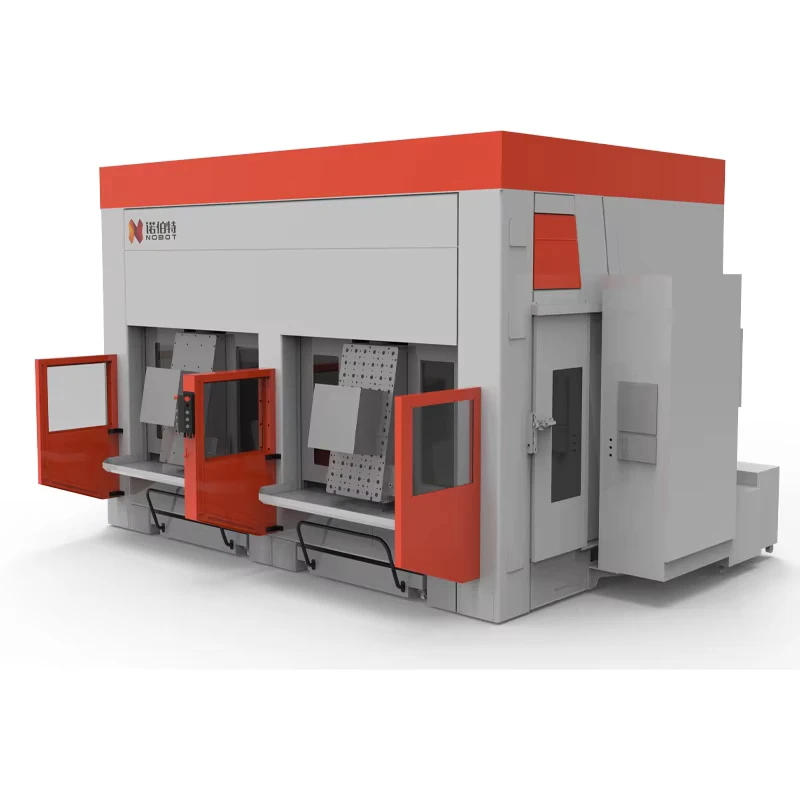

High Precision CNC Gantry Automatic Machining Center Horizontal Fully Automatic Unit
High Precision CNC Gantry Automatic Machining Center Horizontal Fully Automatic Unit
| type | Double turntable horizontal | table travel (x) (mm) | 1200 |
| table travel (y) (mm) | 1800 | table travel (z) (mm) | 800 |
| repeatability (x/y/z) (mm) | ±0.02 | positioning accuracy | ±0.03mm/m |
| spindle taper | HSK40E | no. of spindles | 1 |
| tool magazine capacity | 8 | cnc control system | NOBOT/LYNUC/SIEMENS 840D CNC System |
| machining capacity | Light Duty | voltage | 380V/50Hz |
| table size | 1200x600 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 15 |
| weight (t) | 15 | max. table load(kg) | 400 |
| dimension(l*w*h) | 6500mm*3500mm*3500mm(255.91in*137.80in*137.80in) | range of spindle speed | 500 - 36000 |
| rapid feed speed | 3000 - 60000 | Product name | Double turntable horizontal five axis machining center |
| Type | Double turntable horizontal | Characteristic | High speed, high rigidity,; High processing efficiency; |
| Processing material | Plastic, wood, aluminum, fiberglass, carbon fiber, etc | Applications | Automotive interior and exterior, aviation and other fields. |
