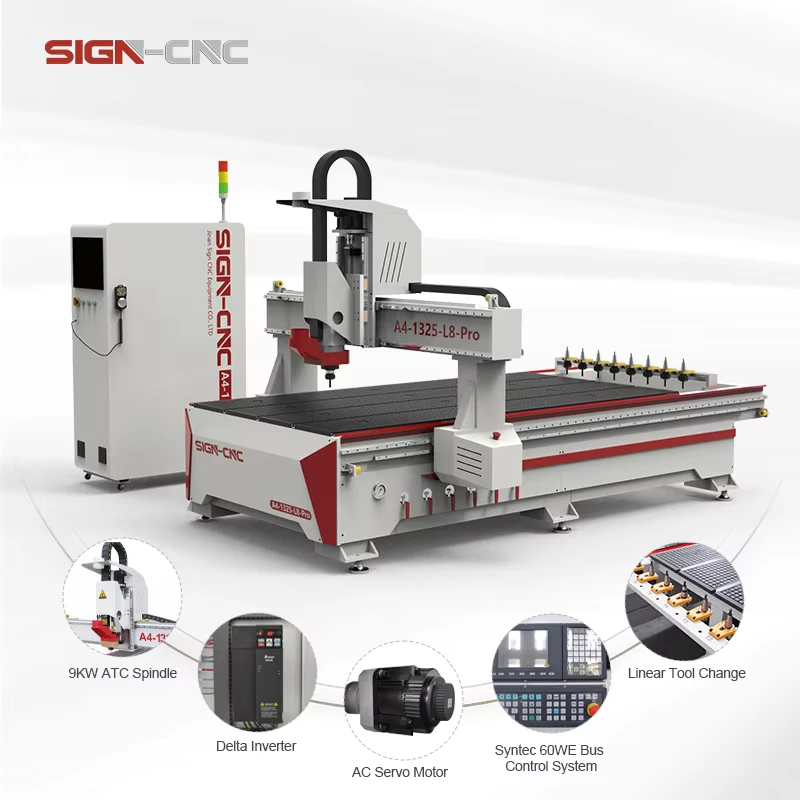

High Precision 3 Axis CNC Router Machine 1325 with Syntec System 9KW ATC Spindle CNC Router for 3D Wood Engraving
High Precision 3 Axis CNC Router Machine 1325 with Syntec System 9KW ATC Spindle CNC Router for 3D Wood Engraving
| number of axes | 3 | voltage | 380V 50HZ/ 220V 50HZ |
| machine type | CNC Router | No. of Spindles | ATC |
| key selling points | Multifunctional | Accessory Type | Dust collection |
| core components | Bearing, Motor, Gearbox, Spindle | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 1600 | positioning accuracy (mm) | 0.01 |
| travel (x axis)(mm) | 1300 | travel (y axis)(mm) | 2500 |
| repeatability (x/y/z) (mm) | 0.01 | Spindle Motor Power (kw) | 9 |
| dimension(l*w*h) | 3600*2280*2000mm(141.73*89.76*78.74in) | Product name | A4-Pro Series Automatic Tool Change Woodworking Center |
| Working area | 1300x2500x300mm | X, Y Structure | Helical rack and high precision 25mm square guide rail |
| Z Structure | High precision 25mm square guide rail and ball screw | Spindle power | 9.0KW ATC air-cooled ISO30-ER32 spindle |
| Motor and driver | Syntec 1000W AC servo motor and driver (Z-axis motor with brake) | Table surface | Vacuum table with T-slot and 7.5KW vacuum pump |
| Inverter | Delta high frequency 11KW inverter | Control system | Syntec 60WE bus Control System |
| Reducer | Japan Shimpo planetary reducer |
