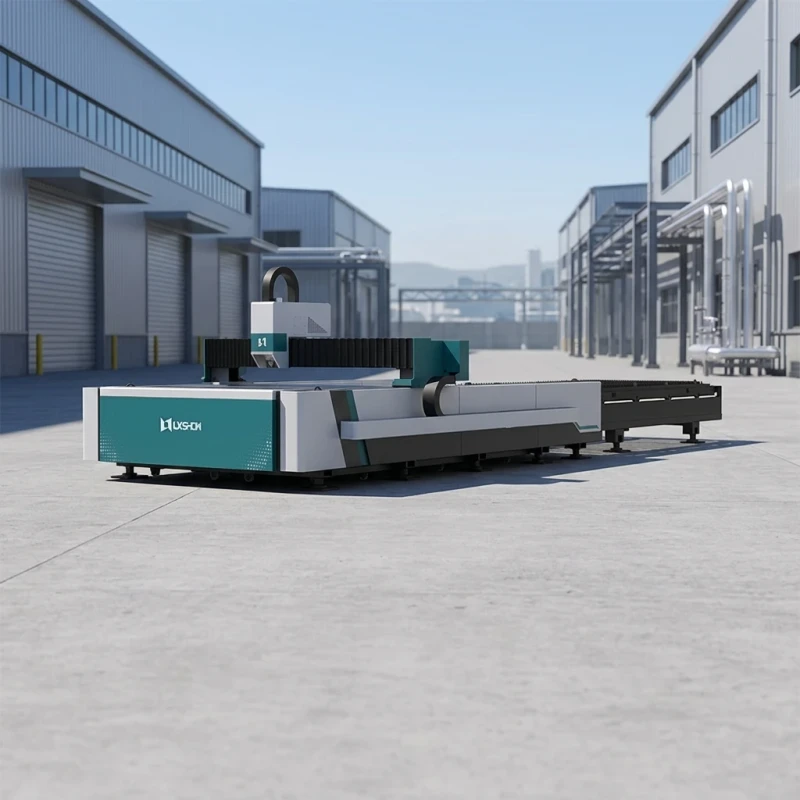

High Power 12kw Fiber Laser Machine LX3015HC Exchange Platform Laser Cutting Machine

High Power 12kw Fiber Laser Machine LX3015HC Exchange Platform Laser Cutting Machine
  • High Power 12kw Fiber Laser Machine LX3015HC Exchange Platform Laser Cutting Machine

    • High Power 12kw Fiber Laser Machine LX3015HC Exchange Platform Laser Cutting Machine

    Request a Quote
    laser typeFiber LaserApplicable MaterialMetal
    cutting thickness0-30mm(0-1.18in)Laser Power1000 W, 1500 W, 2000 W, 3000 W, 4000 W, 6000 W, 8000 W, 12000W, 12KW
    products handledSheet MetalCutting Speed0-40m/min(0-131.23ft/min)
    configurationGantry TypeFeatureAutomated Loading
    mode of operationContinuous Wavecooling modeWATER COOLING
    control system brandCypcutservo motor brandYaskawa
    guiderail brandHIWINlaser head brandRaytools
    optical lens brandII-VIgraphic format supportedAI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
    conditionNewKey Selling PointsEnergy Saving
    cnc or notYesControl SoftwareCNC
    Weight5000Positioning Accuracy0.01mm
    Working Area1500*3000mmLaser Wave Length1064nm
    Maximum Idle Running Speed60m/minMaximum acceleration1.2G
    Position Accuracy±0.05mm/mRepeat Positional Accuracy± 0.03mm
    Power Consumption≤30 KWWorking Voltage380V 3 PHASE 50hz/60hz
    Work Environment0-45°C, Moisture 45-85%
