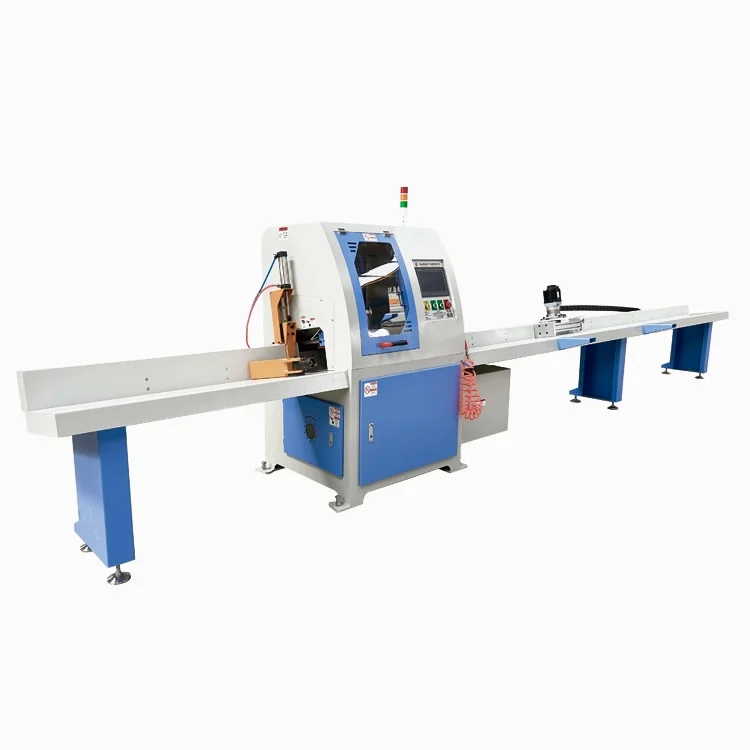

High Efficiency Horizontal Table Saw Sliding Table Saw with Auto Measure for Plank Board Cutting
High Efficiency Horizontal Table Saw Sliding Table Saw with Auto Measure for Plank Board Cutting
| Type | Circular Saw | voltage | 380;220;415 |
| Style | Horizontal | Bevel Angle Range | 0°-45° right |
| use | Woodworking | core components | PLC |
| machinery test report | Provided | Key Selling Points | High efficient |
| video outgoing-inspection | Provided | weight (kg) | 1250 |
| power (kw) | 6.25 | dimension(l*w*h) | 9550*1000*1650 |
| Product name | Wood Cross Cut Saw | Feeding Table Length | 4000mm/6000mm(optional) |
| Cutting Width | 20-200mm/20-300mm/20-500mm(optional) | Cutting height | 10-120mm/10-150mm/10-160mm(optional) |
| Feeding speed | 35m/min | Cutting Motor Power | 5.5kw/7.5kw(optional) |
| Working mode | Automatic feeding, automatic cutting | Saw Blade | 450mm/550mm(optional) |
| Sawing accuracy | ±1mm/±0.3mm(optional) | Pushing transmission mode | Timing belt/Rack and pinion(optional) |
