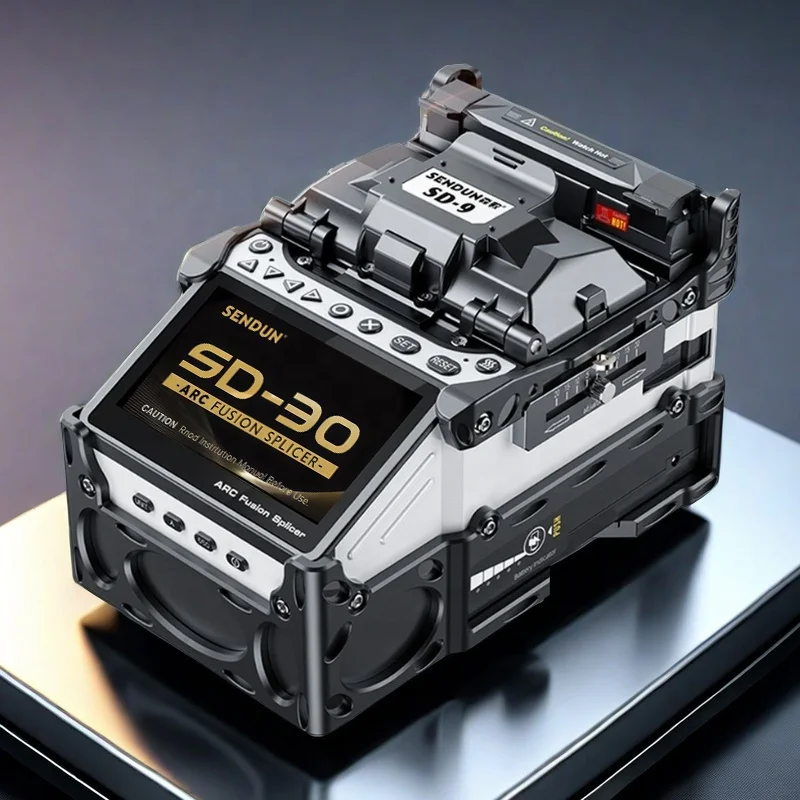

High Core Alignment SD-30 Auto Fiber Optic Fusion Splicer with POE/GSM/GPRS Support
High Core Alignment SD-30 Auto Fiber Optic Fusion Splicer with POE/GSM/GPRS Support
| Type | fusion splicer, Fiber fusion splicer | Connector Type | SC/LC/FC/ST |
| Power Source | AC 100-240V, Dc 12V | Use | Trunk & FTTX |
| Network | Bluetooth, POE, Gprs, Wi-Fi, 4 G, Gsm, 3 G | Warranty Time | Negotiated |
| Port | - | Power - Minimum Receivable | - |
| Frequency Range | - | Core | 6 motors Core to Core alignment |
| Appicable Fibers | SM(ITU-T G.652&G.657).MM(ITU-T G.651).DS(ITU-T G.653),NZDS (G-655) | Cladding Diameter | 80-150 μm |
| Typical Splice Loss | SM: 0.02dB/MM: 0.01dB/DS: 0.04dB/NZDS: 0.05dB/G657:0.03dB | Splicing Time | 5s |
| Heating Time | 11s | Return Loss | ≥ 60 dB |
| Screen | 4.3" high resolution display with touch screen | Battery Capacity | SD-9A: 5200mAh; SD-9&SD-30: 7200mAh |
| Outstanding Features | Automatic Rotation Cleaver, OPM&VFL, Integrated Chassis with Chair |
