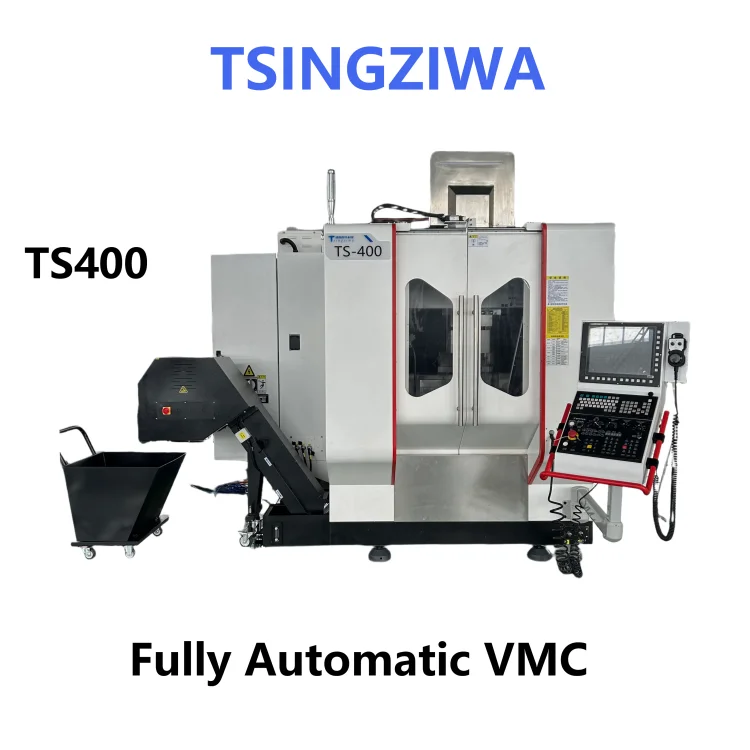

High Accuracy VMC TS 400 5 Axis CNC Milling Router Automatic Tool Changer Vertical Machining Center Equipped Syntec
High Accuracy VMC TS 400 5 Axis CNC Milling Router Automatic Tool Changer Vertical Machining Center Equipped Syntec
| type | 5-Axis Complex 3D Machining | table travel (x) (mm) | 450 |
| table travel (y) (mm) | 550 | table travel (z) (mm) | 400 |
| repeatability (x/y/z) (mm) | 0.005mm(0in) | positioning accuracy | 0.008mm(0in) |
| spindle taper | BT40 | no. of spindles | 5 Axis (Full 5-axis) |
| tool magazine capacity | 24 | cnc control system | Syntec (FANUC/Mitsubishi Optional) |
| machining capacity | Heavy Duty | voltage | 380 V, 220 V |
| table size | 400x400 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 1.7 |
| key selling points | High-Accuracy, Automatic, Multifunctional, Flexible Manufacturing, Long Service Life, Easy To Operate, High Safety Level | weight (t) | 6.5 |
| max. table load(kg) | 150 | dimension(l*w*h) | 3800*3200*3100 |
| range of spindle speed | 0 - 15000 | rapid feed speed | 0 - 32 |
| Axis Configuration | Full 5-Axis Simultaneous Linkage | Spindle Specification | BT40, 11/15KW, Max 15000rpm |
| Positioning Accuracy | 0.008mm | Repeat Positioning Accuracy | 0.005mm |
| Worktable Size & Load | 400mm Table Max Load 150kg | Travel Range X/Y/Z | 450mm / 550mm / 400mm |
| A/C Axis Rotation | ±120° / 360° Full Rotation | Core Structure | High Rigidity Cast Iron Bed |
| Guide & Screw Brand | NSK Precision Bearing | Control System | Syntec Standard, FANUC/Siemens Optional |
