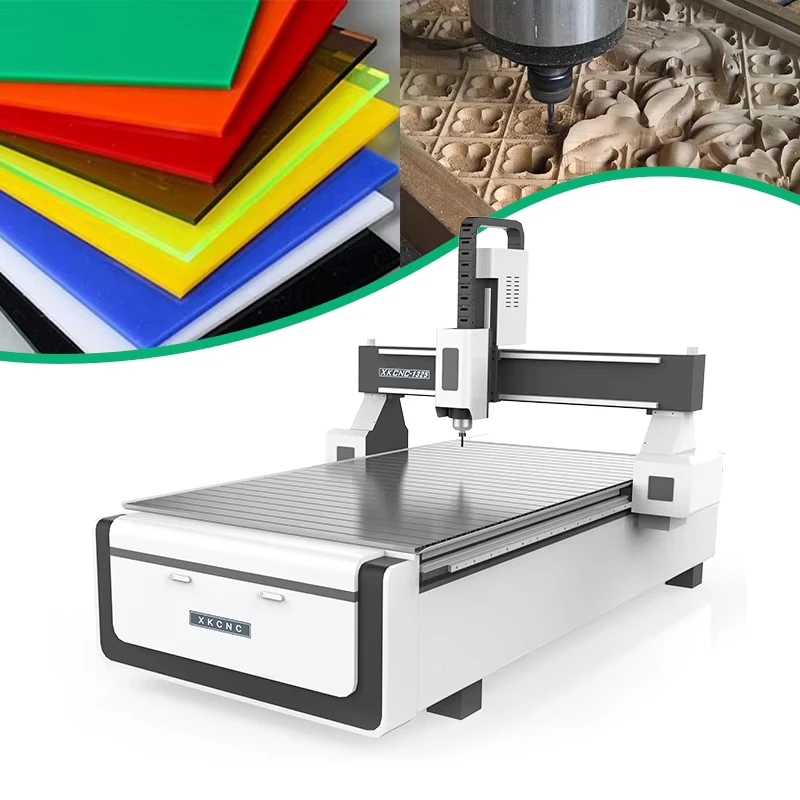

High Accuracy 5.5kw Spindle Neon Light 3D Acrylic Pvc Acp Wood Carving Sign Letter Making Wood 3 Axis Cnc Router Machine

High Accuracy 5.5kw Spindle Neon Light 3D Acrylic Pvc Acp Wood Carving Sign Letter Making Wood 3 Axis Cnc Router Machine
  • High Accuracy 5.5kw Spindle Neon Light 3D Acrylic Pvc Acp Wood Carving Sign Letter Making Wood 3 Axis Cnc Router Machine

    • High Accuracy 5.5kw Spindle Neon Light 3D Acrylic Pvc Acp Wood Carving Sign Letter Making Wood 3 Axis Cnc Router Machine

    Request a Quote
    number of axes3voltage380V
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsHigh-Accuracycore componentsBearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)1300
    range of spindle speed(r.p.m)1 - 18000 rpmpositioning accuracy (mm)0.03
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.03Spindle Motor Power (kw)5.5
    dimension(l*w*h)3200mm*2500mm*1700mm(125.98in*98.43in*66.93in)Name3d Wood Cnc Router
    ApplicationMDF WOOD ACRYLIC ALUMINUMSpindle3/4.5/5.5kw/6kw Spindle
    TransmissionHelical RackWorking area600*900 1300*2500 1200*2400 1200*1200
    InverterFuling InverterTableVacuum Adsorption + T-slot
    Driving systemStepper DriveSpindle speed0-24000RPM
    FunctionCutting Engraving Non-metal Materials
