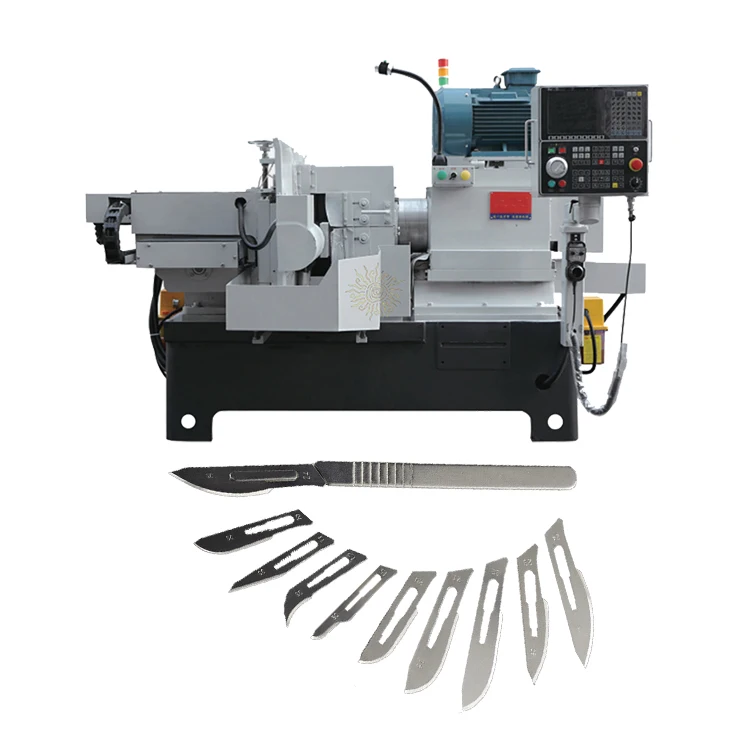

High Accuracy 4 Axis Cnc Surgical Knife Making kitchen Knife Edge Grinding Machine

High Accuracy 4 Axis Cnc Surgical Knife Making kitchen Knife Edge Grinding Machine
  • High Accuracy 4 Axis Cnc Surgical Knife Making kitchen Knife Edge Grinding Machine

    • High Accuracy 4 Axis Cnc Surgical Knife Making kitchen Knife Edge Grinding Machine

    Request a Quote
    typeKnife grindervoltage220V/380V 50HZ 3-PHASE
    cnc or notCNCcore componentsMotor, PLC
    key selling pointsHigh Productivitymachinery test reportProvided
    video outgoing-inspectionProvidedpower (kw)18.5KW(24.81hp)
    weight (kg)3500dimension(l*w*h)2350X1850X2000mm
    Product name4-axis CNC knife single-side grinding machineApplicationScissor/Knife Manufacturing
    Main shaft rotate velocity1280rpmCNC system4-axis Huazhong
    Main shaft box max. travel160mmKnife rest valid traveloverall travel 530mm, grindable length 350mm
    Swift angle+35° -30°Special ServiceA-Z Turn-key Project
    Grinding wheel specificationBarrel wheel 450x370x125hmmModelGH-4Z450F
    After-sales Service ProvidedOnline support, Free spare parts, Video technical support, Field installation, commissioning and trainingAfter Warranty ServiceVideo technical support
    Local Service LocationIndiaCertificationCE, ROHS 2.0
