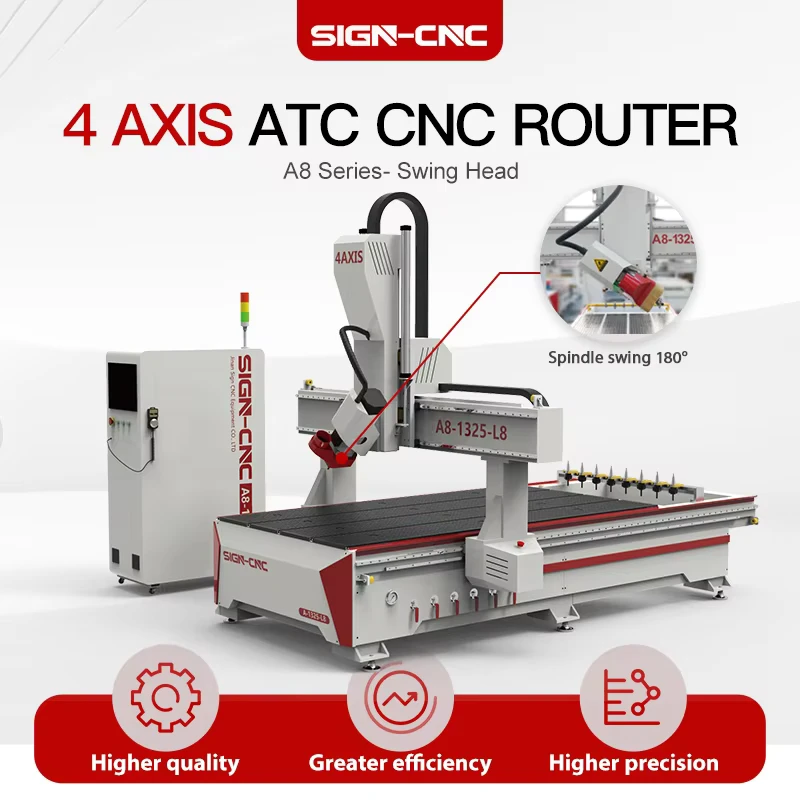

High Accuracy 3D Engraving 4 Axis CNC Router Machine CNC Carving Furniture Door Making 3D Plates MDF Acrylic

High Accuracy 3D Engraving 4 Axis CNC Router Machine CNC Carving Furniture Door Making 3D Plates MDF Acrylic
  • High Accuracy 3D Engraving 4 Axis CNC Router Machine CNC Carving Furniture Door Making 3D Plates MDF Acrylic

    • High Accuracy 3D Engraving 4 Axis CNC Router Machine CNC Carving Furniture Door Making 3D Plates MDF Acrylic

    Request a Quote
    number of axes4voltage380V 50HZ/ 220V 50HZ
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsMultifunctionalAccessory TypeScanner, Dust collection
    core componentsBearing, Motor, Gearbox, Spindlecnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)1600positioning accuracy (mm)0.01
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.01Spindle Motor Power (kw)9
    dimension(l*w*h)3500*2100*2200mm(137.80*82.68*86.61in)Product nameCnc Router Wood Carving Machine
    FunctionWood Acylic Plywood MDF EngravingWorking area1300x2500x400mm
    Spindle9.0KW ATC air-cooled ISO30-ER32 spindleMotor and driverSyntec 1kw AC servo motor and driver
    Table surfacevacuum table with pumpInverterDelta 11kw Inverter
    Guide rail25mm Square Guide RailControl systemSyntec 60WE bus Control System
    After-sales Service Provided24 Hours Online Service+Engineers
