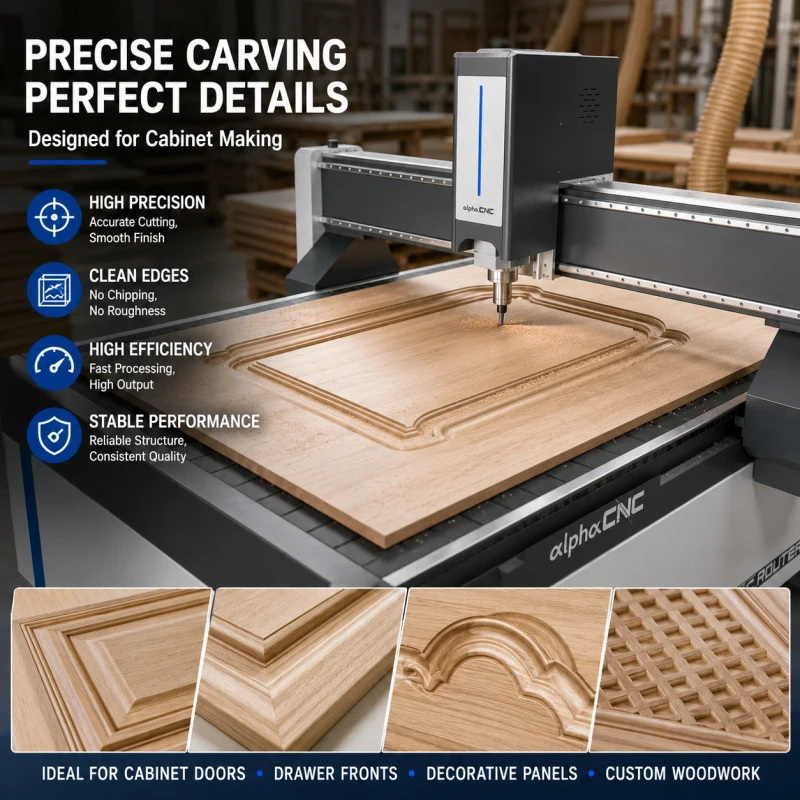

Heavy Duty Frame Router Madera CNC Industrial Grade 3 Axis Router CNC 3020 for MDF Wood Acrylic Aluminum Carving
Heavy Duty Frame Router Madera CNC Industrial Grade 3 Axis Router CNC 3020 for MDF Wood Acrylic Aluminum Carving
| number of axes | 3 | voltage | 220V /380V /customized |
| machine type | CNC Router | No. of Spindles | Single |
| key selling points | Multifunctional | Accessory Type | Dust collection, Scanner |
| core components | Motor, Bearing, Pump, Engine, Gearbox, Spindle | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 1500 | range of spindle speed(r.p.m) | 1 - 24000 rpm |
| positioning accuracy (mm) | 0.02 | travel (x axis)(mm) | 1300 |
| travel (y axis)(mm) | 2500 | repeatability (x/y/z) (mm) | 0.02 |
| Spindle Motor Power (kw) | 3-7.5kw for option | dimension(l*w*h) | 2300*3500*1900mm(90.55*137.80*74.80in) |
| Product name | 3 Axis CNC Router Machine | Control system | DSP (Mach 3, Mach 4, NC-studio for option) |
| Application | MDF/ WOOD /ACRYLIC / SOFT METAL | Motor | Stepper /Hybrid servo/servo motors optional |
| Spindle power | 3kw-7.5kw Optional | CNC Router Table Size | 1300x2500, 1500x3000, 2000x3000, 2000x4000mm |
| Transmission | XY Helical rack and pinion Z ball screw | Table | Aluminum T-slot table or vacuum table |
| Max travelling speed | 25m/min | key selling points | high precision, high automatic, after-sale serive, heavy duty |
