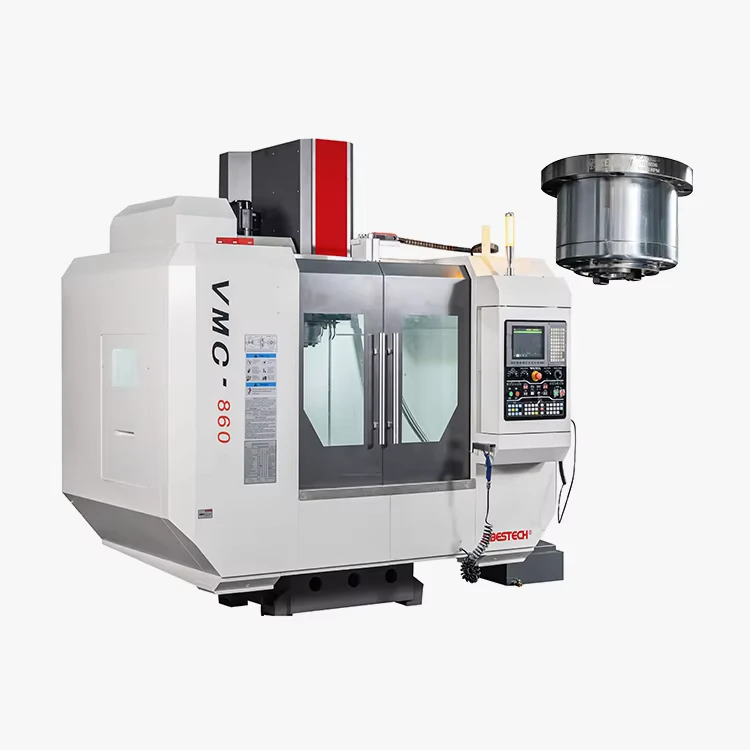

Heavy Duty CNC Machining Center with High Load Capacity 600kg for Metal Processing
Heavy Duty CNC Machining Center with High Load Capacity 600kg for Metal Processing
| type | VERTICAL | table travel (x) (mm) | 850 |
| table travel (y) (mm) | 600 | table travel (z) (mm) | 600 |
| repeatability (x/y/z) (mm) | ±0.003 | positioning accuracy | ±0.005 |
| spindle taper | BT40 | no. of spindles | Single |
| tool magazine capacity | 24 | cnc control system | FANUC |
| table size | 1000x550 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 1.55 |
| key selling points | Automatic | weight (t) | 5.5 |
| max. table load(kg) | 600 | dimension(l*w*h) | 3374x2340x2722mm(132.83x92.13x107.17in) |
| Product name | CNC Machining Center With High Load Capacity 600kg | T Slot (Width/Qty/Distance) | 18/5/90 |
| Distance From Spindle Nose To Table | 100~700mm | Distance From Spindle Center To Column | 642mm |
| Rapid Feed Speed (X/Y/Z) | 48000/48000/36000mm/min | Cutting Feed Speed (X/Y/Z) | 1~10000mm/min |
| Spindle Speed | 10000rpm | Spindle Output Torque (Max.) | 52.5/118N.m |
| Max. Tool Weight | 8kg | Max. Diameter Of Tool (Full/Empty) | 80/150mm |
