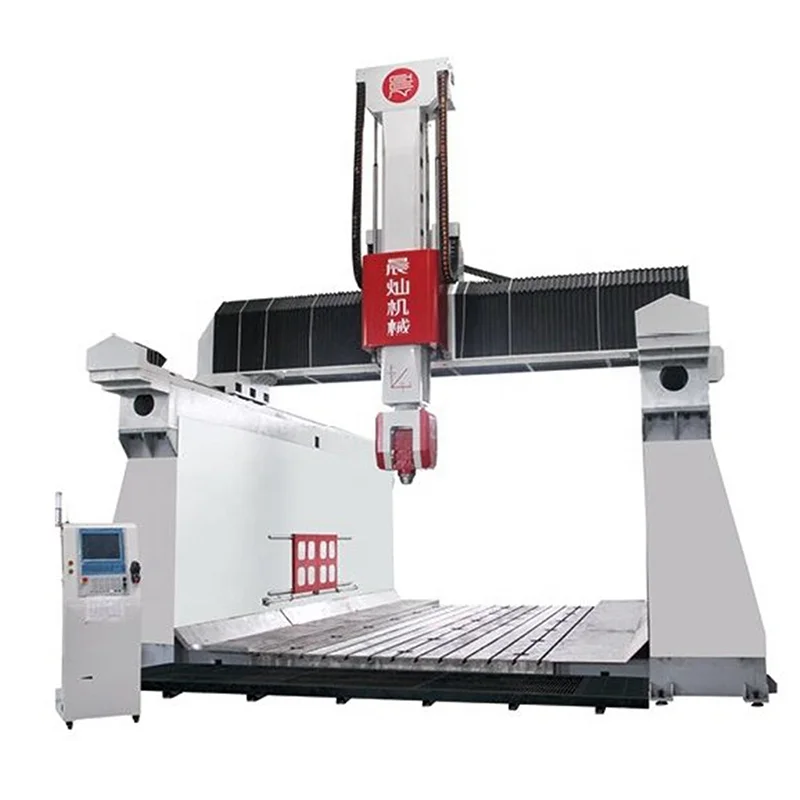

Heavy Duty 5 Axis CNC Router for Boat Molds and Automotive Model Processing

Heavy Duty 5 Axis CNC Router for Boat Molds and Automotive Model Processing
  • Heavy Duty 5 Axis CNC Router for Boat Molds and Automotive Model Processing

    • Heavy Duty 5 Axis CNC Router for Boat Molds and Automotive Model Processing

    Request a Quote
    number of axes5voltage380v
    machine typeCNC RouterNo. of SpindlesATC
    key selling pointsMultifunctionalcore componentsMotor, PLC
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)40000
    range of spindle speed(r.p.m)1 - 24000 rpmpositioning accuracy (mm)0.1
    travel (x axis)(mm)6500travel (y axis)(mm)3500
    repeatability (x/y/z) (mm)0.05Spindle Motor Power (kw)15
    dimension(l*w*h)6500mm*3500mm*2500mm(255.91in*137.80in*98.43in)After-sales Service ProvidedEngineers available to service machinery overseas
    ModelCC-SF6535T-5SWorking tableCast iron, HT300
    C Axis±360°A Axis±120°
    SpindleWater CoolingControl systemTaiwan Syntec Control System
    MotorJapan Yaskawa Servo MotorTransmissionBall Screw Transmission
    FunctionCutting Engraving Carving Milling
