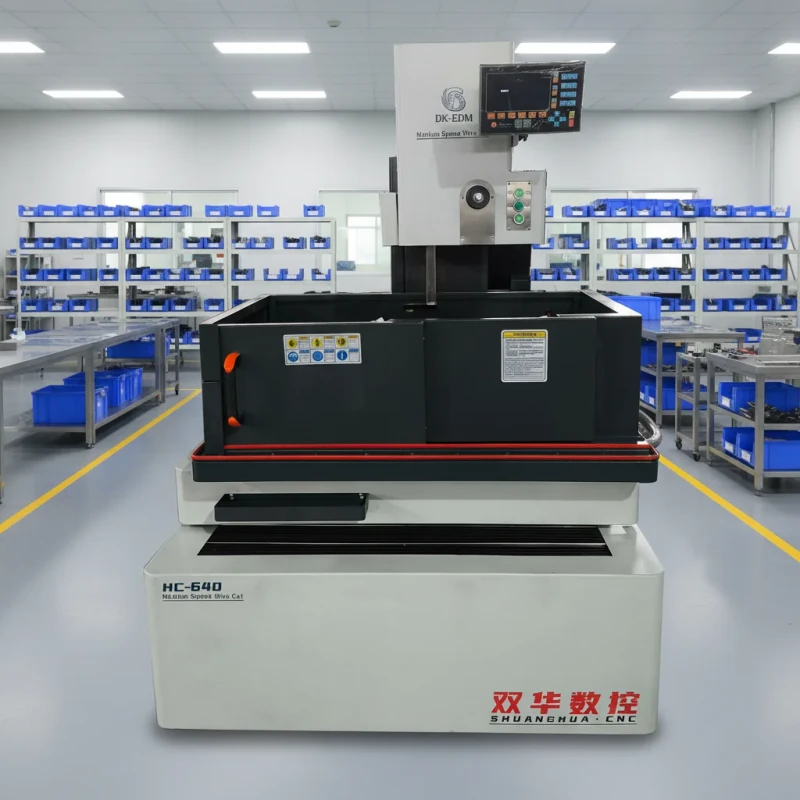

HC640 CNC Wire EDM Machine PLC Motor High Precision Medium Speed XYUV Servo Drive 250mm Thickness DK7745 Engine Gear Bearing

HC640 CNC Wire EDM Machine PLC Motor High Precision Medium Speed XYUV Servo Drive 250mm Thickness DK7745 Engine Gear Bearing
  • HC640 CNC Wire EDM Machine PLC Motor High Precision Medium Speed XYUV Servo Drive 250mm Thickness DK7745 Engine Gear Bearing

    • HC640 CNC Wire EDM Machine PLC Motor High Precision Medium Speed XYUV Servo Drive 250mm Thickness DK7745 Engine Gear Bearing

    Request a Quote
    machine typeWire EDMvoltage380 V, 220 V, 110 V
    cnc or notCNCkey selling pointsHigh-Accuracy
    machinery test reportProvidedcore componentsPLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
    video outgoing-inspectionProvidedpower (kw)1.5
    weight (kg)1600dimension(l*w*h)1900*1600*1900
    Worktable travel (mm)400*600Workbench size (mm)920*530
    Precision≤0.01mmProcessing taper±6°/80mm
    Optimal processing surface roughnessRa ≤ 1.0~1.2μm(cut one and repair two)Max. cutting thickness (mm)250mm
    Processing speed (mm^2/min)≥150Wire speed1~11.4m/s variable frequeney adjustable
    Maximum workpiece weight (kg)500control systemX8,Autocut,wincut
