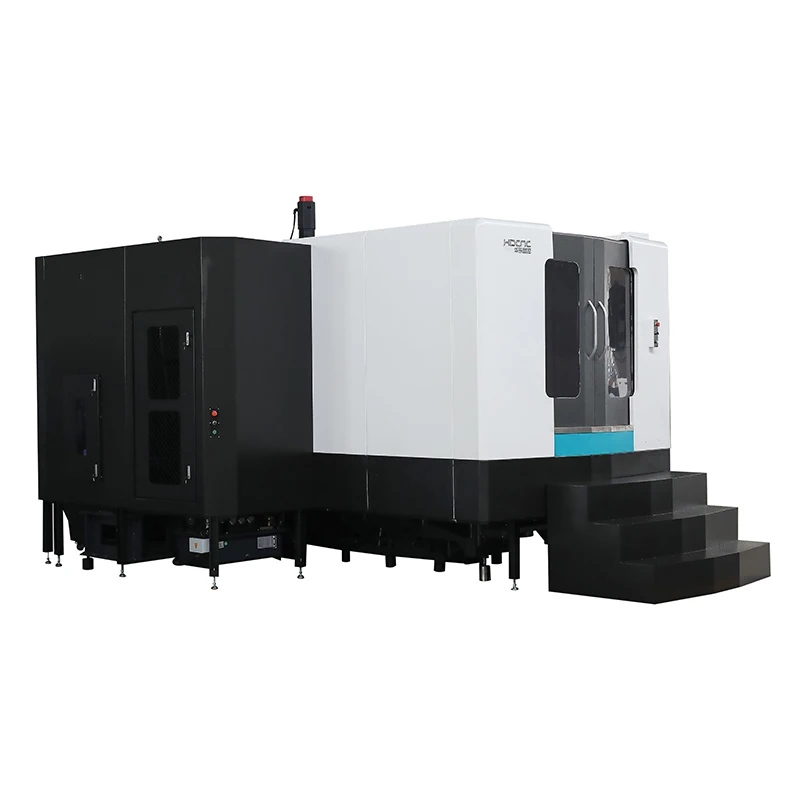

HC Horizontal CNC Milling Machine Center Fanuc Control System BT50 Spindle Taper
HC Horizontal CNC Milling Machine Center Fanuc Control System BT50 Spindle Taper
| type | Horizontal | table travel (x) (mm) | 800 |
| table travel (y) (mm) | 600 | table travel (z) (mm) | 600 |
| repeatability (x/y/z) (mm) | 0.006 | positioning accuracy | 0.012 |
| spindle taper | BT50 | no. of spindles | Single |
| tool magazine capacity | 24 | cnc control system | FANUC |
| machining capacity | Heavy Duty | voltage | Customization |
| table size | 500*600 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 3.5 |
| key selling points | Long Service Life, Competitive Price | weight (t) | 10.5 |
| max. table load(kg) | 500 | dimension(l*w*h) | 3800*3000*3020mm(149.61*118.11*118.90in) |
| range of spindle speed | 1 - 6000 r.p.m | rapid feed speed | 1 - 15000 mm/min(0.04-590.55in/min) |
| Product name | Horizontal Machining Center | Spindle Speed | 6000 Rpm |
| Spindle power | 11/15kw | Pull stud | BT50-45° |
| Payment | L/C,T/T | Certificate | CE |
| After Warranty Service | Online and video support |
