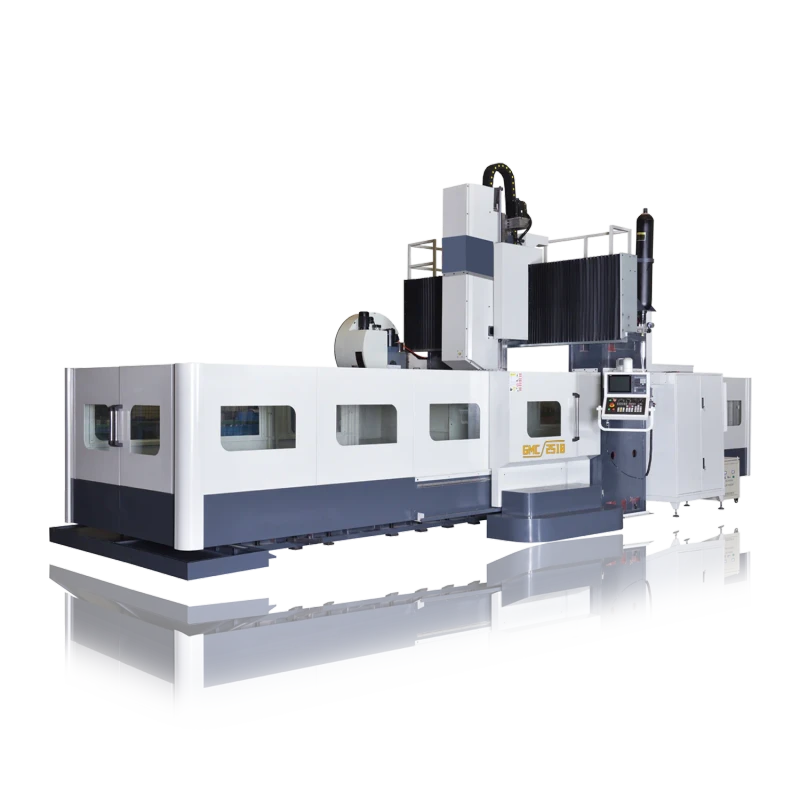

GMC 2518 Automatic Full Protection Heavy Duty CNC Vertical Gantry Type Machining Center
GMC 2518 Automatic Full Protection Heavy Duty CNC Vertical Gantry Type Machining Center
| type | VERTICAL | table travel (x) (mm) | 2500 |
| table travel (y) (mm) | 1900 | table travel (z) (mm) | 1080 |
| repeatability (x/y/z) (mm) | ±0.008 | positioning accuracy | ±0.005 |
| spindle taper | BT50 | no. of spindles | 3 |
| tool magazine capacity | 24 | machining capacity | Heavy Duty |
| voltage | 380 V | table size | 2700*1600 |
| machinery test report | Provided | video outgoing-inspection | Provided |
| min. time of tool change(s) | 4 | weight (t) | 23000 |
| max. table load(kg) | 25000 | range of spindle speed | 50 - 8000 |
| rapid feed speed | 1 - 10 |
