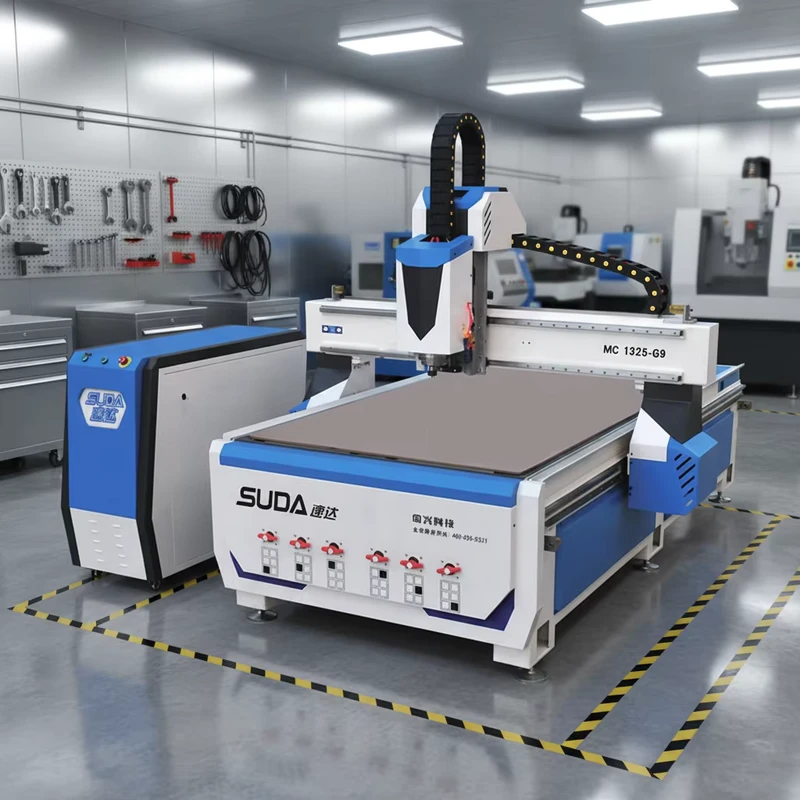

G9 1325 High Speed CNC Router for Mini Characters Acrylic with Independent Cabinet 3 Axis Single Spindle

G9 1325 High Speed CNC Router for Mini Characters Acrylic with Independent Cabinet 3 Axis Single Spindle
  • G9 1325 High Speed CNC Router for Mini Characters Acrylic with Independent Cabinet 3 Axis Single Spindle

    • G9 1325 High Speed CNC Router for Mini Characters Acrylic with Independent Cabinet 3 Axis Single Spindle

    Request a Quote
    number of axes3voltage380 V
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsCompetitive Pricecore componentsMotor, Gear, Engine
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)1000
    range of spindle speed(r.p.m)0 - 18000positioning accuracy (mm)0.02
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.02Spindle Motor Power (kw)7.5
    dimension(l*w*h)1300*2500*1200Product NameCNC High Speed Machining Center
    SpindleWater Cooling SystemWorking area1300x2500mm
    TransmissionXY-axis:rack Z-axis:ball ScrewInvertersunfar
    DriverDELTA DRIVERLinear railTHK
    Control SystemSUDA 3 IN 1ApplicationKitchen Cabinet Doors Furnitures Making
    After-sales Service ProvidedOnline Support
