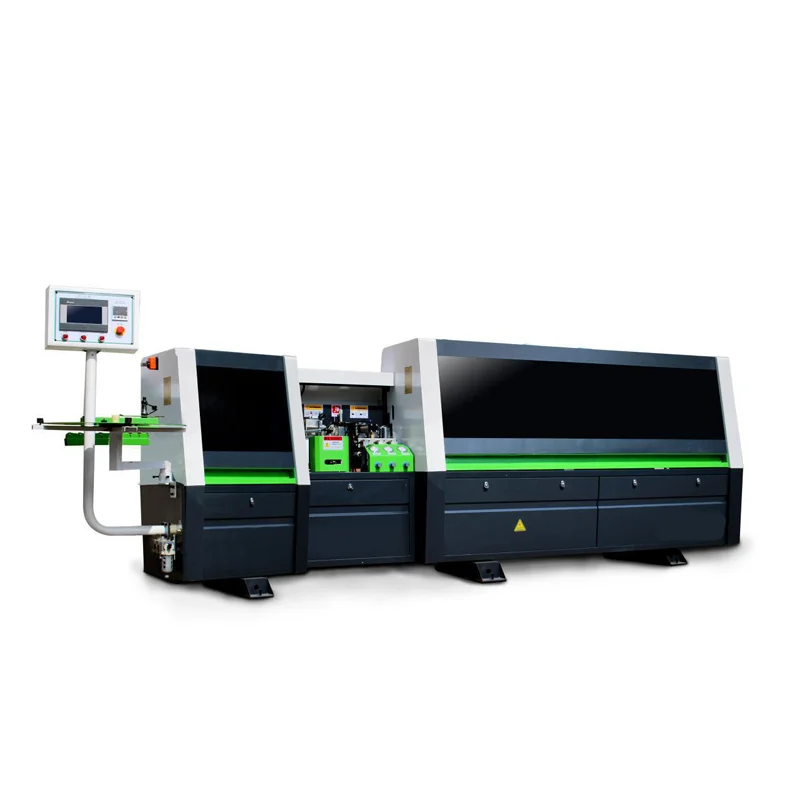

Fully Automatic High Accuracy Edge Banding Machine 7 Functions for PVC and MDF Production with Pre Milling 220V 380V

Fully Automatic High Accuracy Edge Banding Machine 7 Functions for PVC and MDF Production with Pre Milling 220V 380V
  • Fully Automatic High Accuracy Edge Banding Machine 7 Functions for PVC and MDF Production with Pre Milling 220V 380V

    • Fully Automatic High Accuracy Edge Banding Machine 7 Functions for PVC and MDF Production with Pre Milling 220V 380V

    Request a Quote
    typeEdge Banding MachineusageMDF Production
    voltage220V 380VPlatform Dimensions4000mm*1500mm(157.48in*59.06in)
    core componentsMotorMaterial TypePVC, Wood
    video outgoing-inspectionProvidedkey selling pointsHigh-Accuracy
    power (kw)18.1weight (kg)1200
    dimension(l*w*h)5300 x 900 x 1600 mm(208.66x35.43x62.99in)Heating power1.5 KW
    Feeding motor power2.2KWGlue spreading power0.37 KW
    End cutting Power0.75 KW x 2Rough trimming power0.75 KW x 2
    Fine trimming power0.75 KW x 2Buffing motor power0.37 KW x 2
    Feeding speed13-23 m/minAir pressure0.6-0.8 Mpa
    Banding tape width10-60mm
