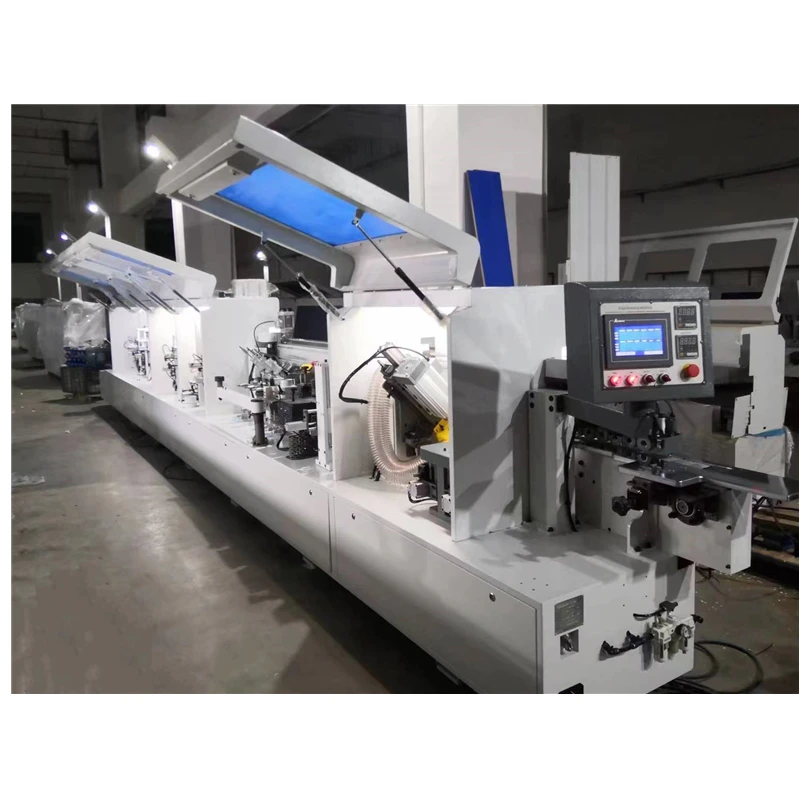

Full Automatic Inclined 45 Degree Bevel Straight Edge Banding Edge Bander Machine with Pre Milling Corner Trimming

Full Automatic Inclined 45 Degree Bevel Straight Edge Banding Edge Bander Machine with Pre Milling Corner Trimming
  • Full Automatic Inclined 45 Degree Bevel Straight Edge Banding Edge Bander Machine with Pre Milling Corner Trimming

    • Full Automatic Inclined 45 Degree Bevel Straight Edge Banding Edge Bander Machine with Pre Milling Corner Trimming

    Request a Quote
    typeedge banderusageMDF Production
    voltage220V/380Vcore componentsBearing, Motor, Gear, PLC, Gearbox, Engine
    video outgoing-inspectionProvidedkey selling pointsAutomatic
    power (kw)30weight (kg)3500
    dimension(l*w*h)9500*950*1600mm(374.02*37.40*62.99in)Panel thickness12-25mm
    Band tape thickness (straight)0.6-3mmBand tape thickness (bevel)0.8-1.5mm
    Min. panel length (bevel)150mmpanel width (bevel)≥120mm
    Power30kwWorking pressure0.6MPa
    Machine size9000*950*1600mmMachine weight3500kg
    Air pressure0.6-0.8Mpa
