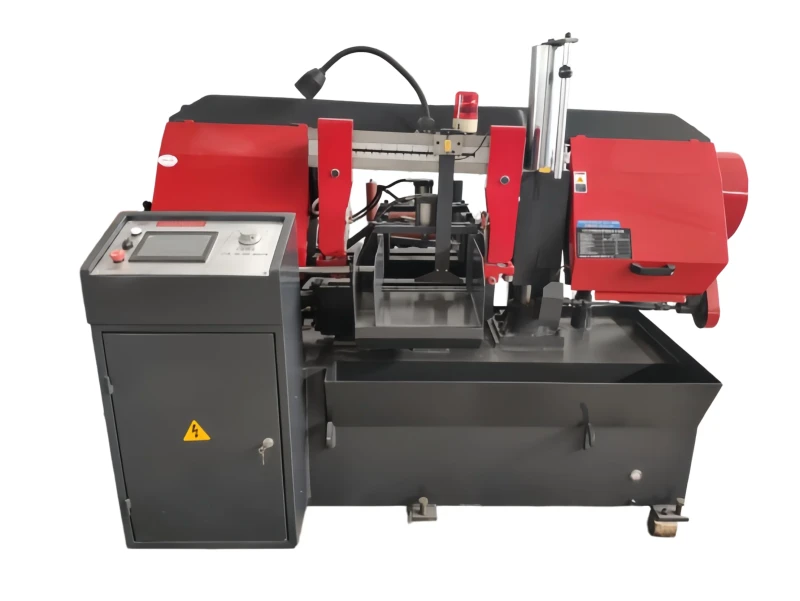

Full automatic CNC Double column Metal Band Saw
Full automatic CNC Double column Metal Band Saw
| machine type | Band Saw Machine | motor power (kw) | 4.0Kw |
| saw blade tension method | Hydraulic | core components | PLC, Motor, Gearbox |
| blade speed (m/min) | 80 | weight (kg) | 1450 |
| Cutting capacity | round 330mm rectangle 330(W)x330(H)mm | Bundle cutting capacity | Maximum 300(W)x140(H)mm Minimum 200(W)x90(H)mm |
| Main Motor | Main motor 3-phase 4KW | Hydraulic pump motor | 0.75KW |
| Saw blade speed | 20-80 m/min regulated by inverter | Saw blade size | 4115x34x1.1 mm |
| Work piece clamping | Hydraulic | Saw blade tension | Hydraulic |
| Main drive | Worm gear reducer | Automatic workpiece feeding mode | Driven by hydraulic cylinder length read by grating ruler |
