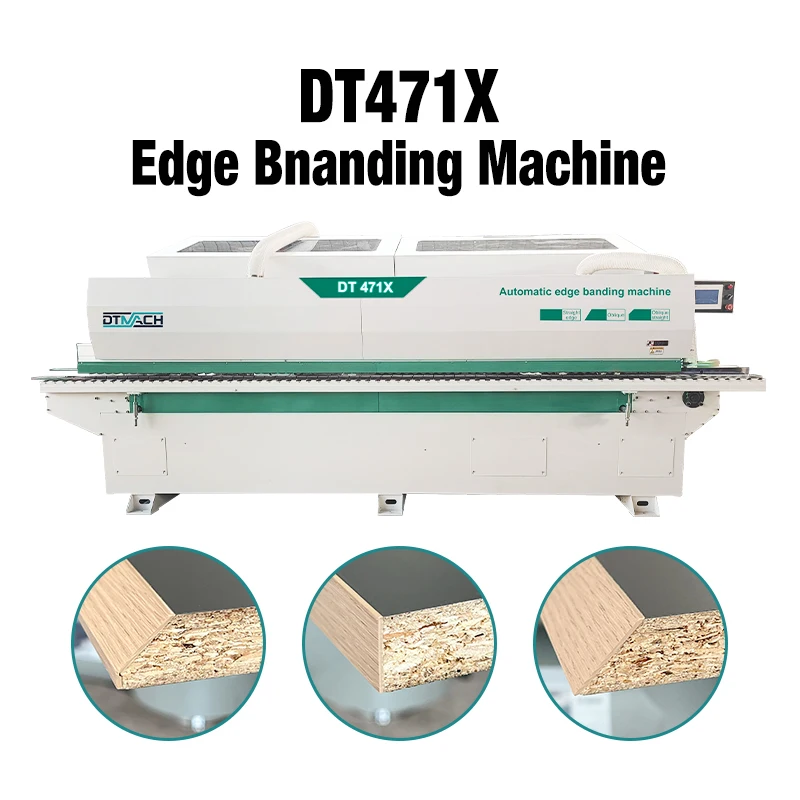

Full Auto Beveled Straight Edge Banding Machine with Pneumatic Adjustment for PVC Melamine and Wood

Full Auto Beveled Straight Edge Banding Machine with Pneumatic Adjustment for PVC Melamine and Wood
  • Full Auto Beveled Straight Edge Banding Machine with Pneumatic Adjustment for PVC Melamine and Wood

    • Full Auto Beveled Straight Edge Banding Machine with Pneumatic Adjustment for PVC Melamine and Wood

    Request a Quote
    typeEdge Banding MachineusageOSB Production
    voltage380 Vcore componentsMotor, PLC
    Material TypeWoodvideo outgoing-inspectionProvided
    key selling pointsEasy To Operatepower (kw)16.5
    weight (kg)1100dimension(l*w*h)4310*830*1450mm(169.69*32.68*57.09in)
    Edge banding thickness0.8-3mmBoard thicknessBeveled straight edge 15-25mm,Pure bevel 18mm,Straight edge 15-35mm
    Conveying speed12-16 m/minConveying motor1.5KW, 32-axis
    Profiling motor3.5KW x 2, Variable Frequency Speed ControlGlue pot motor0.55kw
    Trimming motor0.37KW x 2, Variable Frequency Speed ControlFine-finishing motor0.55KW x 2, Inverter
    Glue pot heater/Auxiliary heating2KWUpper and lower polishing motor1.1KW
