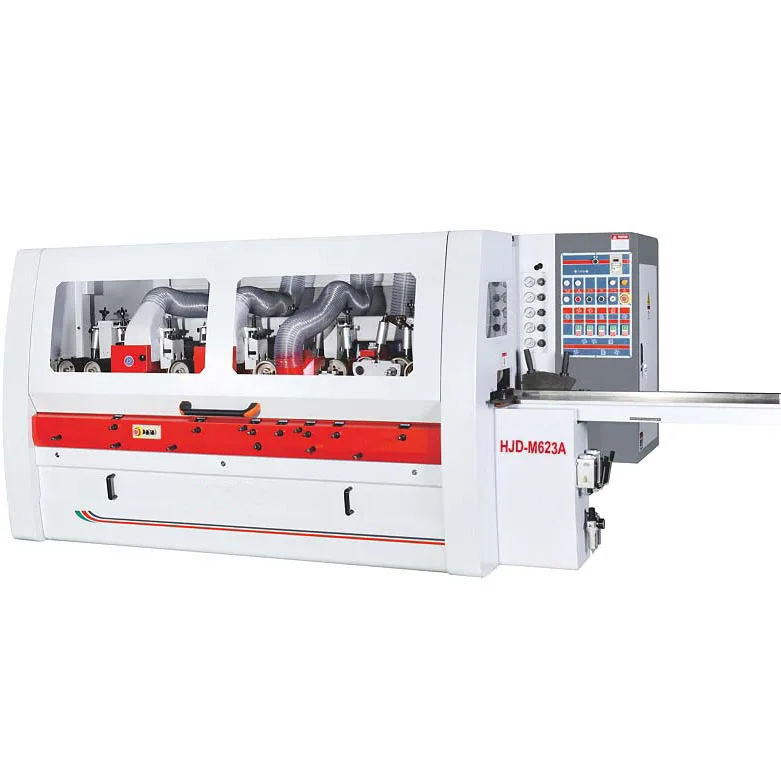

Four Side Planer Door Jam Architecture Archirave Planing Moulding Machine Moulder MB623A
Four Side Planer Door Jam Architecture Archirave Planing Moulding Machine Moulder MB623A
| type | Four Side Moulder | max.planing width(mm) | 120 |
| voltage | 220V 380V 415V 440V | power (kw) | 58.6 |
| Cutter Type | Spiral | core components | PLC, Bearing, Pressure Vessel, Gear, Pump |
| sliding table equipped | No | machinery test report | Provided |
| Number Of Blades | 4 | video outgoing-inspection | Provided |
| key selling points | High-Accuracy | max.planing depth(mm) | 100 |
| weight (kg) | 4200 | dimension(l*w*h) | 4100*1630*1750mm(161.42*64.17*68.90in) |
| Working width | 25-230mm | Working thickness | 8-150mm |
| Working speed | 10-40mm | Front feeding table lenght | 1800mm |
| Spindle rotation speed | 6800rpm | Most spindle shaft | 11kw |
| 4nd upper shaft | 5.5kw | Lifting motor | 1.1kw |
| Left and right shaft | 7.5kw*2 | Total power | 58.6 |
