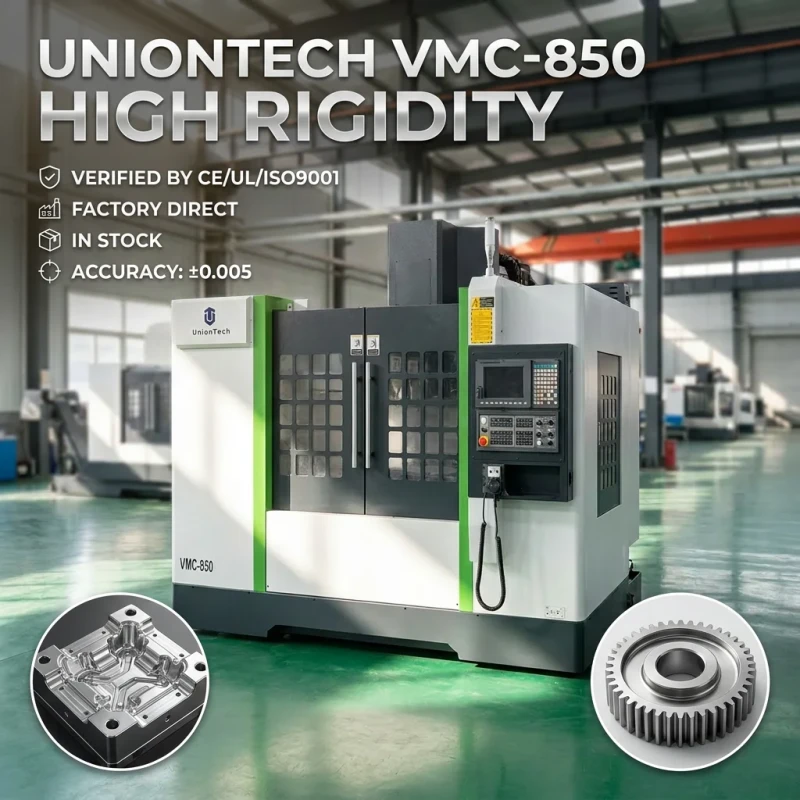

FANUC 4 Axis CNC Vertical Machining Center CNC Milling Machine VMC Machine 3axis 5axis VMC850
FANUC 4 Axis CNC Vertical Machining Center CNC Milling Machine VMC Machine 3axis 5axis VMC850
| type | VERTICAL | table travel (x) (mm) | 800 |
| table travel (y) (mm) | 500 | table travel (z) (mm) | 500 |
| repeatability (x/y/z) (mm) | ±0.005 | positioning accuracy | ±0.008 |
| spindle taper | BT40 | no. of spindles | Single |
| tool magazine capacity | 24 | cnc control system | SYNTEC |
| machining capacity | Heavy Duty | voltage | 380v |
| table size | 1000X500 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 2 |
| key selling points | Competitive Price | weight (t) | 5 |
| max. table load(kg) | 500 | dimension(l*w*h) | 2600*2300*2800mm(102.36*90.55*110.24in) |
| range of spindle speed | 1 - 12000 r.p.m | rapid feed speed | 1 - 8000 |
| Model | VMC850 5 axis RTCP machining center | Guide rail | Taiwan HIWIN & Taiwan TBI guide rail( Japan NACHI as optional) |
| Control system | SYNTEC controller ( SIEMENS/GSK/FANUC/KND as optional) | Optional model | VMC650/VMC850/VMC1160/VMC1370/VMC1580 machining center |
| Optional parts | Chip Removal System / Renishaw Edge Finder / Center Water Outlet | Detection Equipment | Renishaw Laser & Ballbar Test |
| Application | Automotive Parts/Aerospace /General Machinery & Valve Industry | Bed structure | High-quality HT300 Mehanite cast iron with a reinforced rib structure |
| Accuracy | ±0.005 | After sales | 24/7 Online Technical Support/Overseas Engineer On-site Service |
