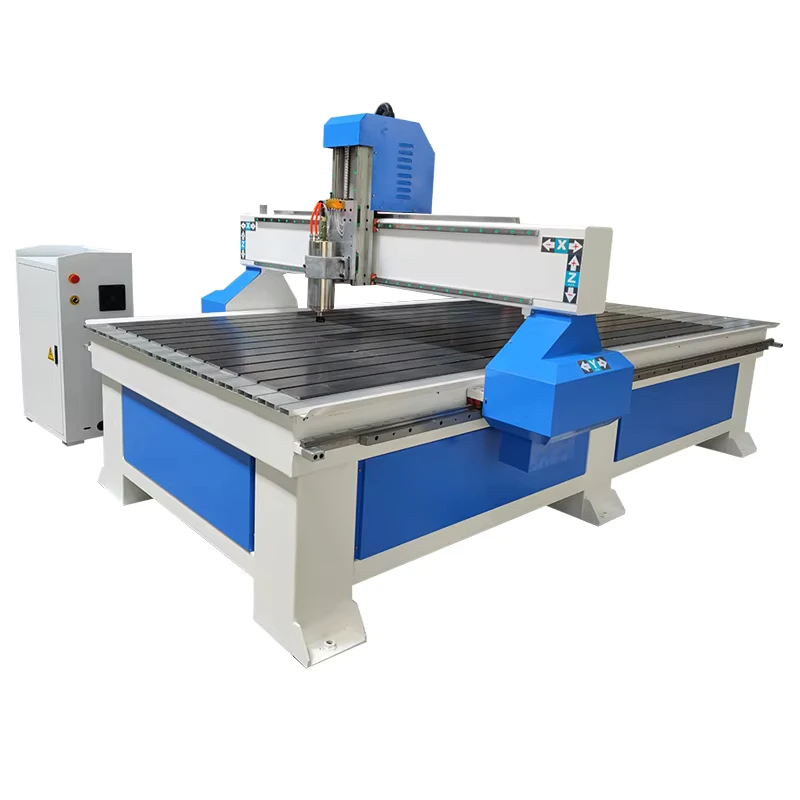

Factory Price Woodworking Solid Wood CNC Router 2D 3D Engraving and Cutting Machine Carver and Cutter

Factory Price Woodworking Solid Wood CNC Router 2D 3D Engraving and Cutting Machine Carver and Cutter
  • Factory Price Woodworking Solid Wood CNC Router 2D 3D Engraving and Cutting Machine Carver and Cutter

    • Factory Price Woodworking Solid Wood CNC Router 2D 3D Engraving and Cutting Machine Carver and Cutter

    Request a Quote
    number of axes3voltageAC220V/380V
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsCompetitive Pricecore componentsBearing, Motor, Gear, Engine, Gearbox
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)1200
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.01
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.02Spindle Motor Power (kw)3.2kw(4.29hp)
    dimension(l*w*h)3100*2250*1850mm(122.05*88.58*72.83in)working area1300 *2500*200mm
    Table surfaceAluminum molding + PVC ( T slot table)drive system X-Y axisRack actuation
    drive system Z axisBall screwWork modeStepper motor(option servo motor)
    Max working speed25m/minSpindle speed0-24000rmp
    Operating systemNcstudio/DSP/Mach3Power3.2/5.5KW
    Weight1200kg
