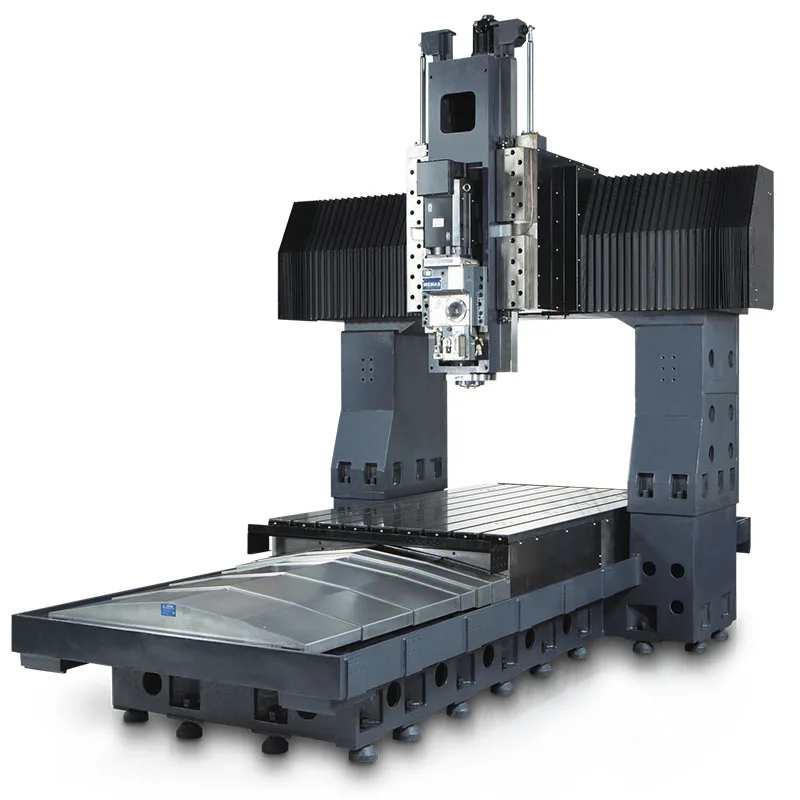

Factory Price Low Cost Cnc Gantry Machining Center Gantry Cnc Milling Machine 3 Axis
Factory Price Low Cost Cnc Gantry Machining Center Gantry Cnc Milling Machine 3 Axis
| type | Gantry | number of axes | 2, 3, 4, 5 |
| table travel (x) (mm) | 2500 | table travel (y) (mm) | 1800 |
| table travel (z) (mm) | 800 | repeatability (x/y/z) (mm) | ±0.003 |
| positioning accuracy | ±0.005 | spindle taper | BT50 |
| no. of spindles | Single | tool magazine capacity | 24 |
| cnc control system | FANUC, Mitsubishi, Siemens | table size | 2700x1600 |
| machinery test report | Provided | video outgoing-inspection | Provided |
| min. time of tool change(s) | 5 | key selling points | Multifunctional |
| weight (t) | 23 T(25.35short tons ) | max. table load(kg) | 6500 kg(14330.05lb) |
| dimension(l*w*h) | 6300*5100*4500 | range of spindle speed | 6000 - 20000 |
| spindle motor power | 15 | Product name | Double Column Cnc Machining Center |
| Control system | SIEMENS GSK KND FANUC MITSUBISHI(optional) | Application | Metal Drilling Tapping Milling |
| Spindle | Taiwan 8000 RMP Spindle | Function | Complex Metalworking Processing |
| Precision | High Precision High Accuracy | Tool magazine | Arm 24 |
| General customised content | Axes | After-sales Service Provided | Engineers |
| Material | Casting Iron CNC Machining Center |
